Technical Information
CAPACITY INFORMATION
Hopper gross volume
2 m³
Fuel tank
65 lt
Payload capacity
1.000 kg
Water tank
300 lt
Hydraulic tank
130 lt
ENGINE INFORMATION
Brand - Model
2.2 lt. 4 Cylinder Water Cooled Perkins Engine
Power
74 hp / 55 kW @ 2.800 RPM
Torque
270 Nm @ 1.600 RPM
Emission
U.S EPA Tier 4 Final / EU Stage V
Working speed
1.600 RPM
SWEEPING EQUIPMENTS

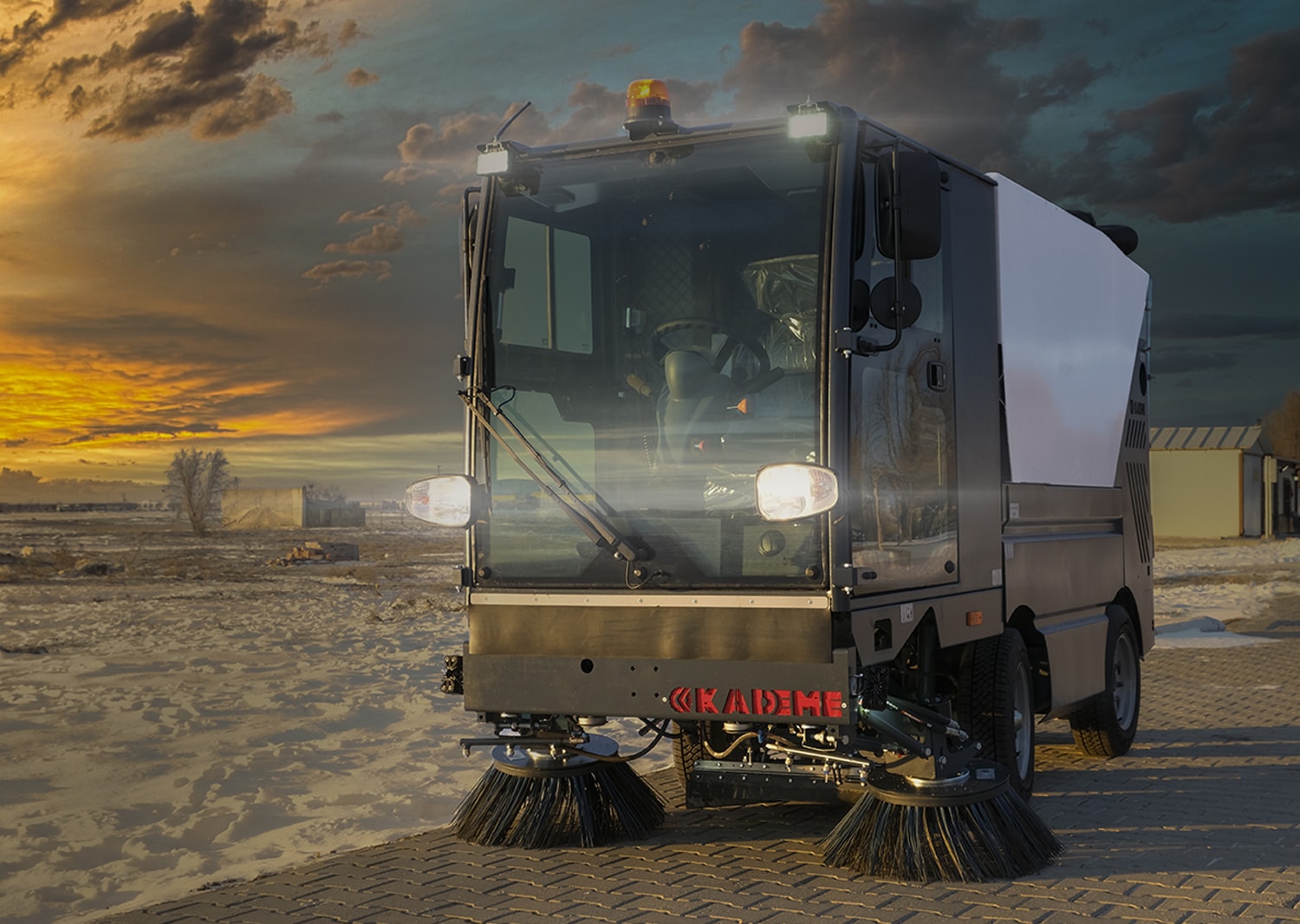

Front brush
Ø 400 mm (0 - 150 dev/min)
Suction hose diameter
Ø 200 mm
Suction nozzle width
650x400 mm
Sweeping width
1.500 mm - 1.900mm (With 3. brush 2.750mm)
Sweeping capacity
22.500 m²
Variable and Adjustable Brush Speed
GENERAL INFORMATION
Tire size
175 / 75R 14C
Wheelbase - Gross Vehicle Weight
1.430 mm / 4.500 kg
Dump height and angle
1.600 mm
Vacuum filter mesh area
0,5 m²
Hydraulic filtration
100 micron suction / 20 micron return
Irrigation Pump Information
4 bar - 11 lt/min
Climbing Ability
27%

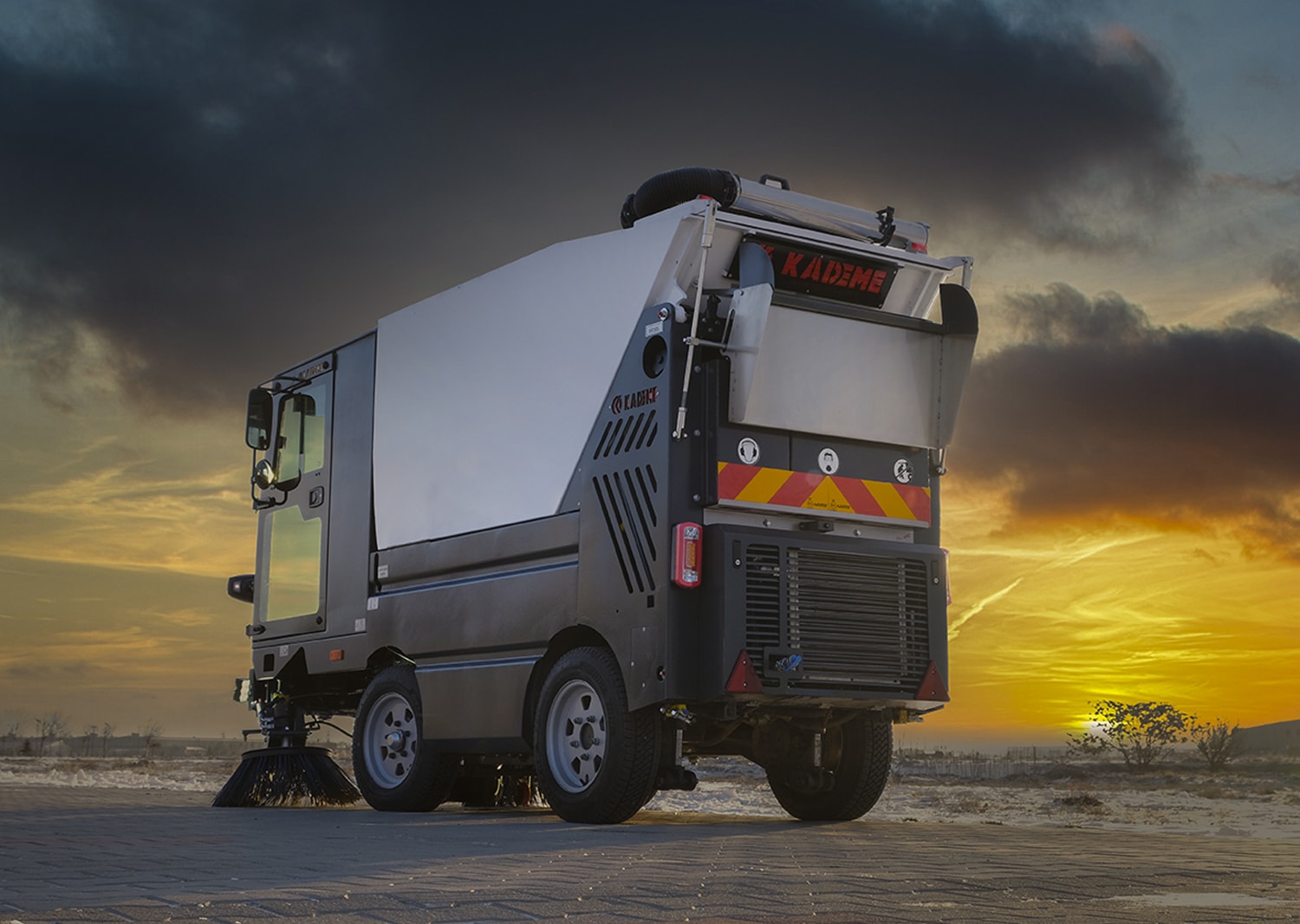

Garbage Hopper Structure
Stainless steel (AISI304)
Sweeping and Cruising Speed
0 - 15 km/h ve 22 km/h
Brake
Hydraulic Type Front and Rear Dynamic Brake System
Suspension system
Front: Hydropneumatic - Rear: Independent Shock Absorber Spring System
Vehicle Curb Weight
3.100 kg
Wheel Turning Diameter
6.700mm ± 100
Tilting Angle
95° ± 5°
Able to dump to garbage compactor tailgate and 1.100 lt garbage container directly
FAN
Type
Heavy Duty, Dynamically Balanced Impeller With Multivane Corrosion Resistance blades
Operation Speed
3000 - 4000 RPM
Fan Air Flow Capacity
8.500 m³/h
Construction Material
Stainless steel (AISI304)
CABIN - CONTROL PANEL

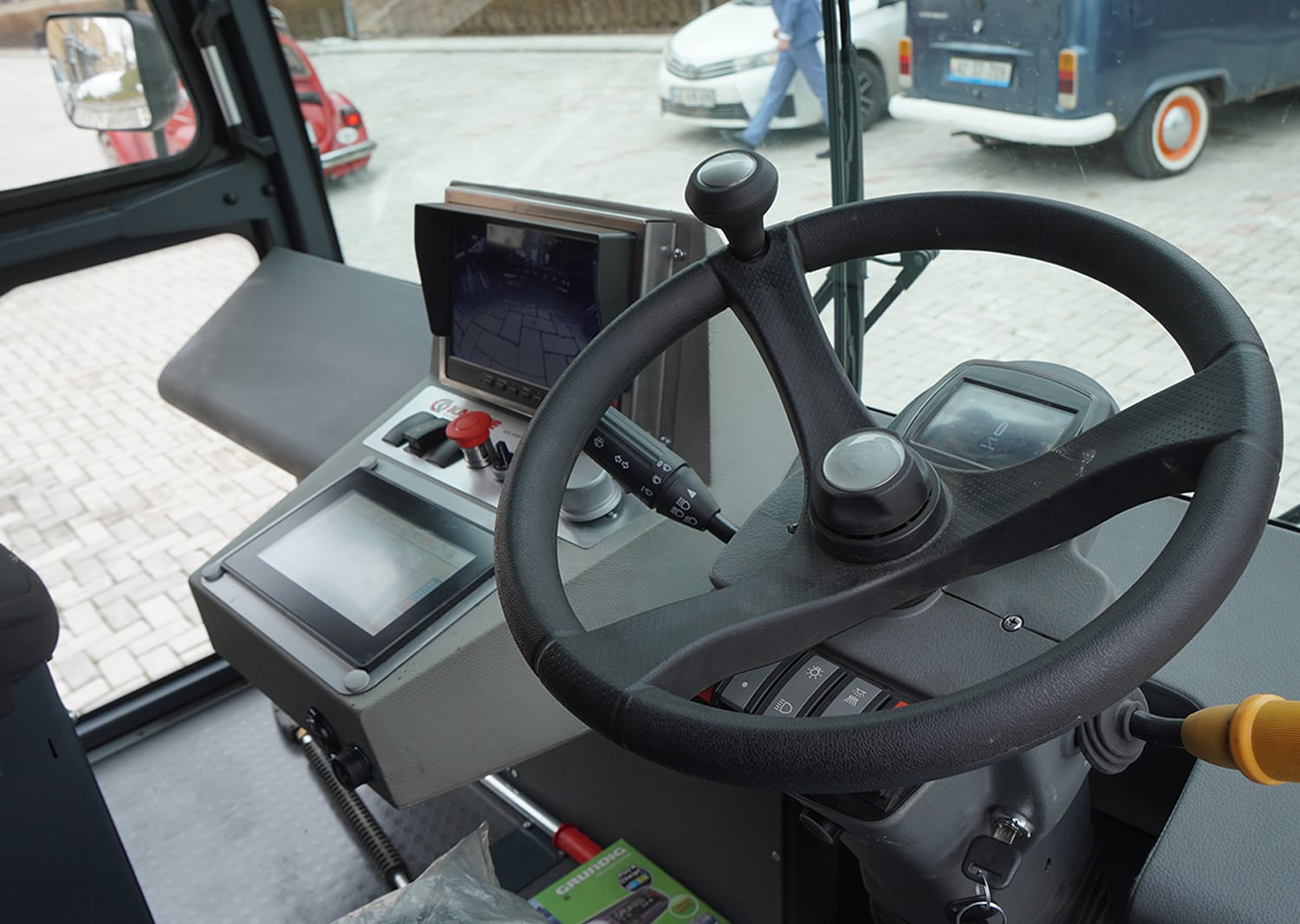

Adjustable and Telescopic Hydraulic Steering Wheel
Single Seat Ergonomic Cabin
In Cabin Climate Control With Air Condition
Tiltable Cabin for Easy Service Access
Radio-Usb-Aux
Engine RPM Display
Engine Operating Hours
Water Tank Level Indicator
Fuel Level Indicator

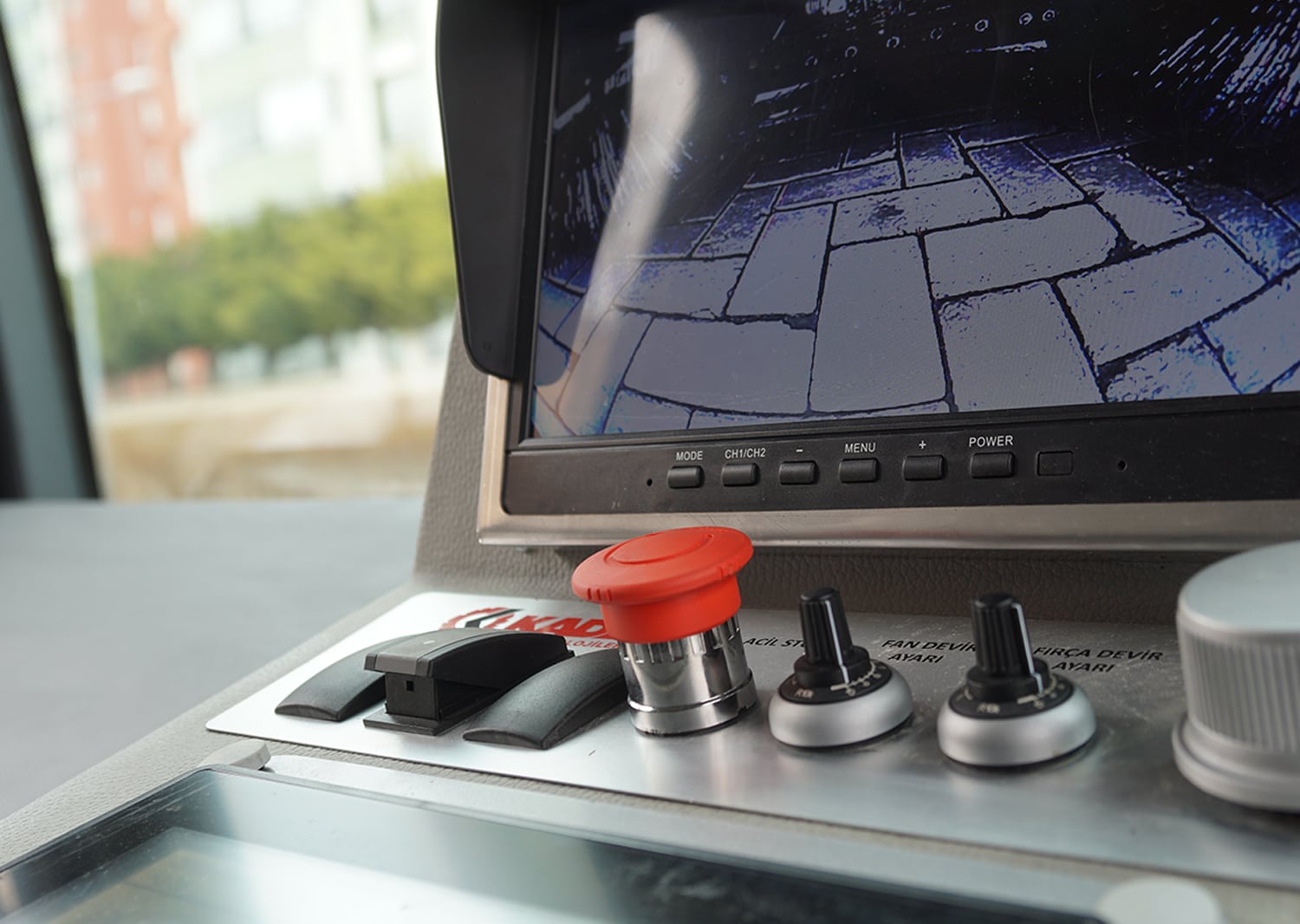

Camera System With in Cabin 7" screen, rear view and suction nozzle cameras
Garbage Hopper Lift Audible Warning
Camera Control System
Front Wheel Maneuverability
OPTIONS
Rear Suction Hose 4mt.
Snow Blade
Snow Sweeping Brush
Front Third Brush
15lt / 150 Bar High Pressure Pump With 10mt Hose and Washing Gun
Magnet
Sprinkling Salt
