KDM 9,5 M³
Truck Mounted Vacuum Type Sweepers
Vacuum Type Road Sweeper

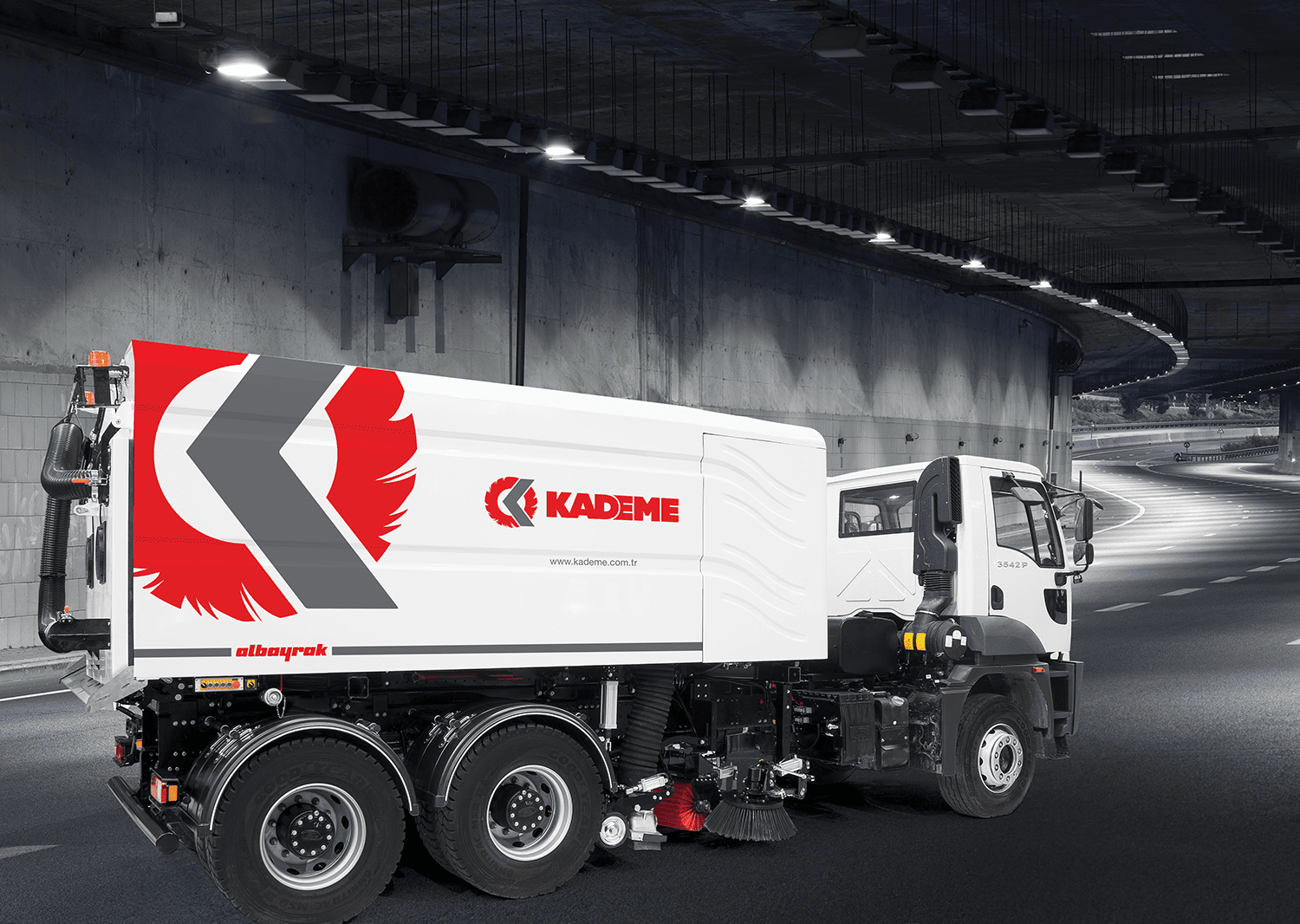

The KDM 9,5m³ Vacuum Type Road Sweeper continues the tradition of successful sweeper technology and with high quality materials and components, we ensure operational reliability and long service life.
Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with low operation rpm with low noise level and fuel saving.
Easy to understand and user friendly control panel give advantage to the operator to control whole system.
Fiber doors on both size give easy access to the auxiliary engine in case of maintenance or break down.
Different size of vacuum type road sweepers from 4 cubic meters to 10 cubic meters can install to suitable carrier vehicles.
Standard high pressure water pump provides more efficient irrigation. It use less water with optimum water consumption level.
5 - 6 ton (Based on Chassis)
2.200lt stainless steel (AISI304) integrated with hopper
AUXILIARY ENGINE INFORMATION
Brand - Model
3.9 lt. 4 Cylinder Water Cooled Tumosan Diesel Engine
115 hp / 86 kW @ 2.300 RPM
405 Nm @ 1.500 RPM
EPA Tier 3 and EU Stage 3A
1.500 - 1.600 RPM
Ø 450 mm - 200 dev/m. Hydraulic engine driven
Ø 400 mm x 1.300 mm - 160 dev / dk. Hydraulic engine driven
Vacuum hose diameter
Ø 250 mm
Vacuum nozzle width
Minimum 12 ton
4.200 - 4.500 mm (6x2 or 6x4)
50° ± 5°
Door opening angle
90° ± 5°
Filter mesh area
16,8 cc / rev
0 - 15 km/h
Welded plain steel (Stainless steel optional)
Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades
2.700 - 3.400 dev/dk
Torque convertor or clutch system
1,8 : 1
Raised hopper warning
Auxiliary engine hour control
Engine temp hour
Engine speed hour
Low level water indicator
Wander hose with boom and trunking excess 5 meters long

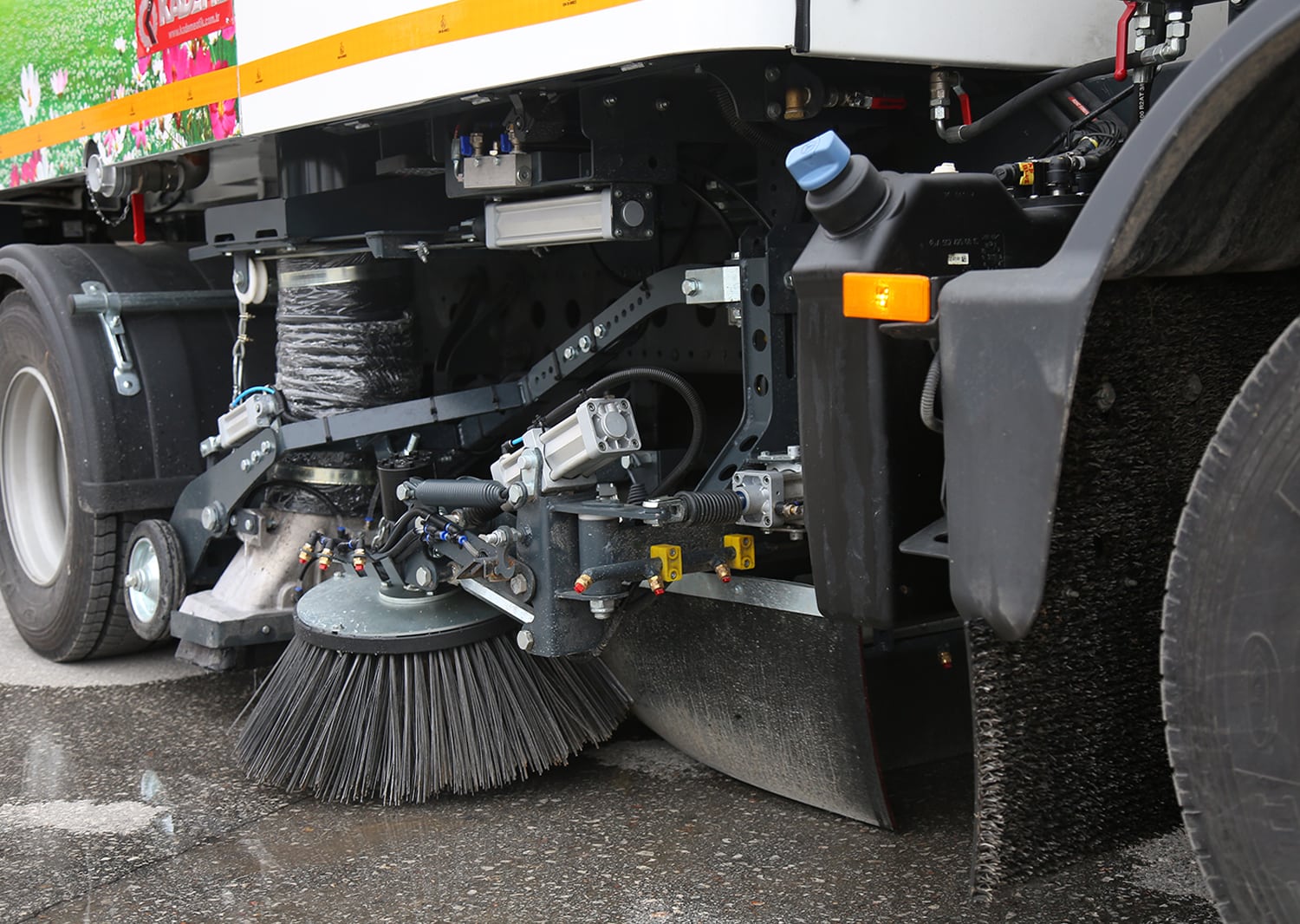

Adjustable side brush speed
Simultaneous dual suction and sweeping 3.500mm sweeping width
Variable side brush positioning system
High pressure washing system
Front bumper road washing system
Additional water tank (In case of cabin and superstructure area is available)
