Articulated Platform
Hydraulic Articulated Platforms
10 – 16 mWorking Height
6 – 7 mHorizontal Reach
200 kgBasket Load Capacity
350°Rotation Angle
ISO 9001 CE certified 10-year spare parts Worldwide delivery
Files
Articulated Platform Catalogue and Documents
Download the product catalogue, browse the full Kademe range and order spare parts by serial number.
Technical data
Download catalogueArticulated Platform Specifications
Technical Features
- Platform Height
- 8 – 14 m
- Working Height
- 10 – 16 m
- Rotation Angle
- 350°
- Horizontal Reach
- 6 – 7 m
- Control Electrical System
- 12 – 24 V
- Basket Load Capacity
- 200 kg
- Basket Insulation
- 1,000 V
- Basket Levelling System
- Hydraulic
- Number of Outriggers
- 4
- Control System
- Proportional or hydro-mechanical
Fan
- Drive System
- PTO
Overview

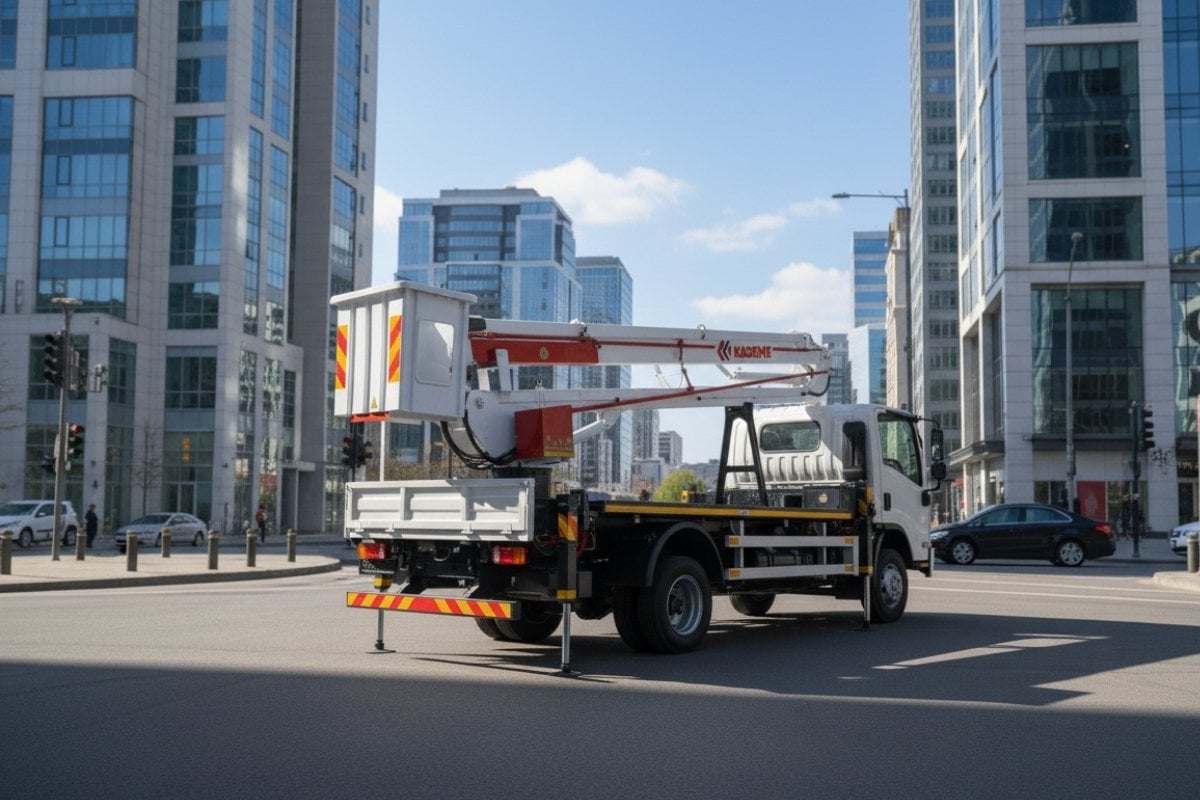

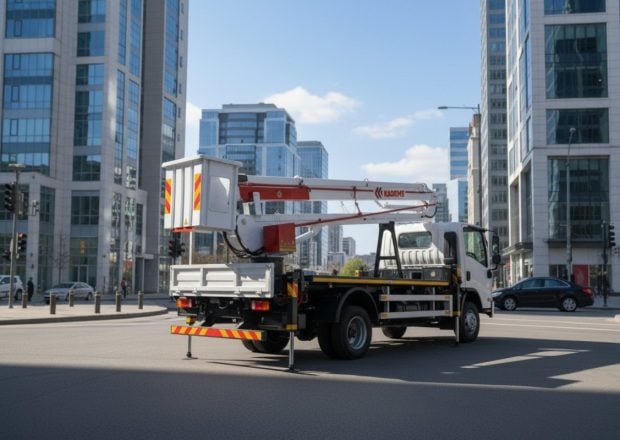

About the Articulated Platform
Kademe hydraulic articulated platforms are designed to deliver maximum efficiency for jobs that require short-term elevated access. With the truck body and hydraulic stabilizers, they provide exceptional stability. Thanks to their strong adaptability to various working conditions, they are widely used in electrical power maintenance, construction, municipal services, landscaping, airports and seaports, as well as for outdoor and highway billboard installations.
With a robust structure, high maneuverability and easy operation, they offer a reliable solution for both professional work environments and municipal services.
General Features
Kademe articulated platforms are mounted on the rear of trucks and integrated with a hydraulic system and stabilizer legs for safe operation. The wide rotation angle and flexible horizontal outreach allow effective use even in tight spaces. The insulated basket and balanced lifting capacity prioritize operator safety.
The control systems give the operator both precise and fast maneuverability. Proportional or hydro-mechanical control can be chosen according to the working environment.
Reach and Movement
Platform Height
Kademe articulated platforms offer a platform height ranging from 8 m to 14 m, adaptable to different job requirements.
Working Height
A maximum working height of 10 m to 16 m allows safe operations at elevated levels.
Rotation Angle
A rotation capability of 350° ensures excellent maneuverability even in confined areas.
Horizontal Outreach
A horizontal outreach of 6 m to 7 m expands the working area and boosts efficiency.
Basket and Stability
Basket Load Capacity
The basket supports up to 200 kg, allowing the operator and necessary tools to be lifted safely.
Basket Insulation
Electrical insulation of 1,000 V provides maximum safety during electrical maintenance work.
Basket Leveling System
Hydraulic leveling keeps the basket stable during operation.
Number of Stabilizers
The platform is equipped with 4 hydraulic stabilizer legs for maximum ground stability.
Drive and Control
Drive System
The platform operates via a PTO (power take-off) system, ensuring reliable and continuous power transfer.
Control System
Proportional or hydro-mechanical control options provide precise and responsive operation, supported by a 12-24 V electrical system for efficient and safe use.
Applications
Kademe hydraulic articulated platforms are widely used for electrical maintenance, billboard installations, construction sites, tree trimming, port and airport maintenance operations, municipal services and urban infrastructure projects.
Why Choose Kademe Articulated Platform?
Engineered by Kademe, these articulated platforms stand out with high safety standards, durable construction and versatile applications. With high reach capacity, powerful hydraulic systems and ergonomic design, they provide operators with efficient, fast and safe working conditions. Explore our other platforms.
