Telescopic Platform

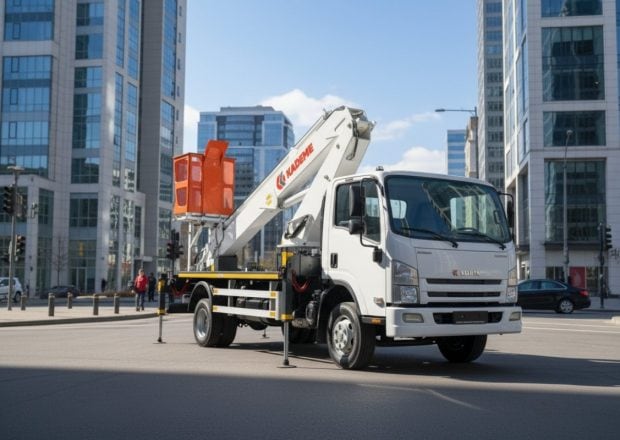

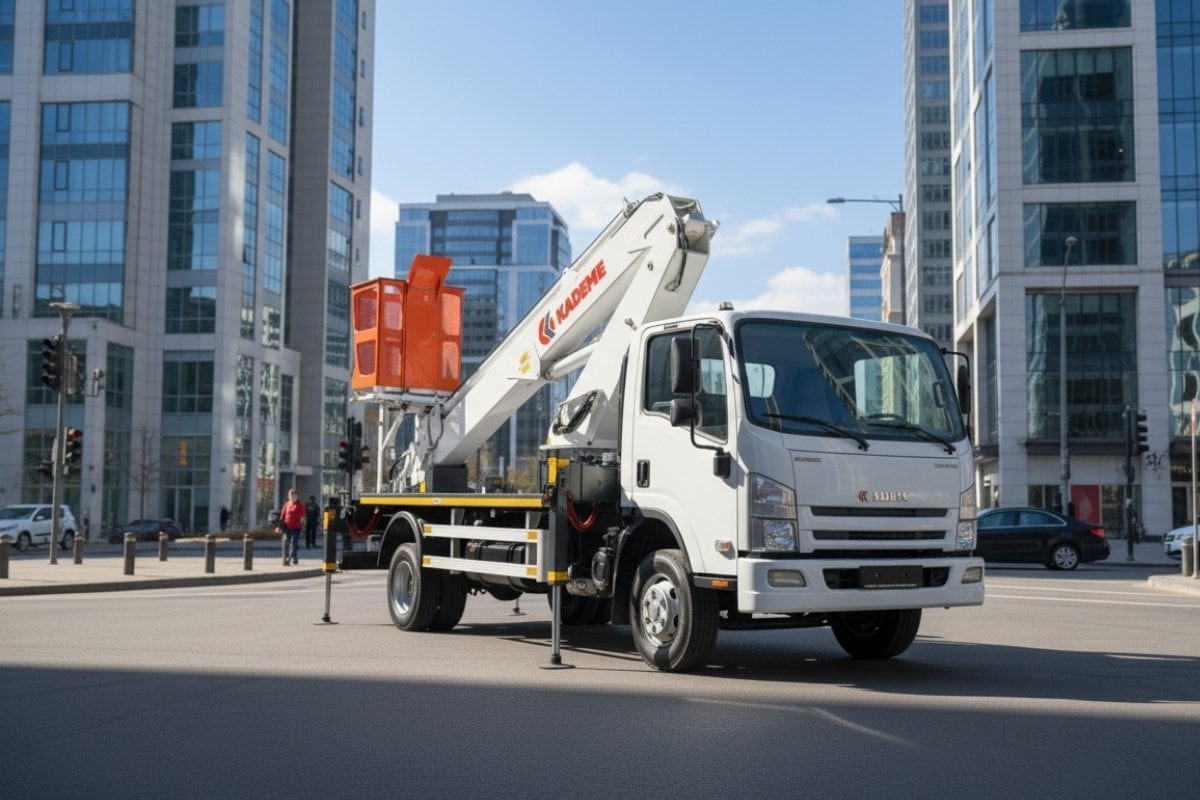

Kademe Hydraulic Telescopic Platforms
10 – 30 mWorking Height
6 – 13 mHorizontal Reach
200 kgBasket Load Capacity
350°Rotation Angle
ISO 9001 CE certified 10-year spare parts Worldwide delivery
Files
Telescopic Platform Catalogue and Documents
Download the product catalogue, browse the full Kademe range and order spare parts by serial number.
Technical data
Download catalogueTelescopic Platform Specifications
Technical Features
- Platform Height
- 8 – 28 m
- Working Height
- 10 – 30 m
- Rotation Angle
- 350°
- Horizontal Reach
- 6 – 13 m
- Control Electrical System
- 12 – 24 V
- Basket Load Capacity
- 200 kg
- Basket Insulation
- 1,000 V
- Basket Levelling System
- Hydraulic
- Number of Outriggers
- 4
- Control System
- Proportional or hydro-mechanical
Fan
- Drive System
- PTO
Overview
About the Telescopic Platform
Kademe Hydraulic Telescopic Platforms are engineered to deliver maximum safety, efficiency and flexibility for tasks that require high-level access. They offer a wide range of applications, from short-term interventions to long-term maintenance operations.
Integrated hydraulic stabilizers mounted on the truck chassis provide excellent stability, even on challenging ground conditions. The robust steel construction, high maneuverability and user-friendly design make these platforms a reliable choice for both municipalities and private sector operations.
Platform Types
Straight Telescopic Platforms
Designed with a single-piece boom, these are ideal for applications where vertical reach is the priority. They offer maximum height, wide rotation angles and long horizontal outreach, ensuring quick access to high points.
Articulated Telescopic Platforms
These provide flexible operation where both vertical and horizontal access are required. Thanks to the articulated boom structure, they can work over obstacles and offer superior maneuverability in confined spaces.
Technical Specifications
Platform and Working Height
Platform heights range from 8 to 28 meters, with a maximum working height of 10 to 30 meters. This makes them ideal for high-rise structures and vertical access tasks.
Rotation and Horizontal Outreach
A 350° rotation range allows wide-area access without repositioning the vehicle, and the platforms reach 6 to 13 meters horizontally for easy side access to elevated work areas.
PTO Drive and Electrical Control
The platforms are powered by PTO, directly utilizing the vehicle’s engine for consistent and reliable performance. The electrical control system operates on 12 to 24 volts, providing safe, low-voltage and energy-efficient control.
Basket Capacity and Insulation
The basket supports up to 200 kg, safely accommodating the operator and required tools. Its 1,000 V electrical insulation ensures safe operation near live power lines.
Basket Leveling and Stabilizers
Hydraulic leveling keeps the basket balanced at all times during work. Four heavy-duty hydraulic stabilizers provide maximum ground stability, even on uneven terrain.
Control System
Operators can choose between proportional or hydro-mechanical control systems for precise movement and adaptability to various work conditions.
Applications
Kademe telescopic platforms are widely used for electrical transmission and distribution line maintenance, billboard and LED screen installation, construction and renovation work, tree pruning and landscaping, port and airport maintenance, as well as municipal services and urban infrastructure projects.
Why Choose Kademe Telescopic Platforms?
Designed with Kademe engineering excellence, these platforms stand out with their high safety standards, robust construction and versatile applications.
With a powerful PTO drive system, hydraulic stabilization, electrical insulation and ergonomic controls, Kademe telescopic platforms ensure safe, fast and efficient operation for every project. Explore our other platforms.
