Refuse Equipments
Mini Dumper Garbage Vehicle
Garbage Taxi
2 – 5 m³Hopper Gross Volume
750 – 2,000 kgLoading Capacity (max)
24 - 40 secWorking Time
120 – 180 barWorking Pressure
ISO 9001 CE certified 10-year spare parts Worldwide delivery
Files
Mini Dumper Garbage Vehicle Catalogue and Documents
Download the product catalogue, browse the full Kademe range and order spare parts by serial number.
Technical data
Download catalogueMini Dumper Garbage Vehicle Specifications
| Minipack (çöp taksi) | Sıkıştırmalı mini damper | |
|---|---|---|
| Capacity Information | ||
| Hopper Gross Volume | 2 – 3.5 m³ | 5 m³ |
| General Information | ||
| Hopper Weight | 375 kg | 460 kg |
| Equipment Weight | – | 1,200 kg |
| Loading Capacity (max) | 750 – 1,300 kg | 1,500 – 2,000 kg |
| Floor | 3 - 4 mm ST-52 | 3 mm ST-52 |
| Sides | 2 - 4 mm ST-52 | 3 mm ST-52 |
| Outriggers | 2 pcs on rear | |
| Hand Loading Height | 1,430 mm | – |
| Lift Angle | 45° | 90° |
| Working Pressure | 120 – 180 bar | – |
| Working Voltage / Hydraulic System | 12V DC (battery powered) | 12 - 24 V DC |
| Container System | – | 120 - 240 - 480 - 800 - 1,100 lt |
| Garbage Hopper Technical Features | ||
| Loading Height | 1,720 mm | 2,000 mm |
| Garbage Box Hydraulic Features | ||
| Working Time | 24 - 40 sec | – |
| Recommended Vehicles | ||
| Recommended Vehicles | Ford Transit 330S / 350M, Iveco Daily 35S, Fiat Ducato 2800S, Hyundai H100 | Mitsubishi Fuso, Isuzu, Iveco Daily |
Overview

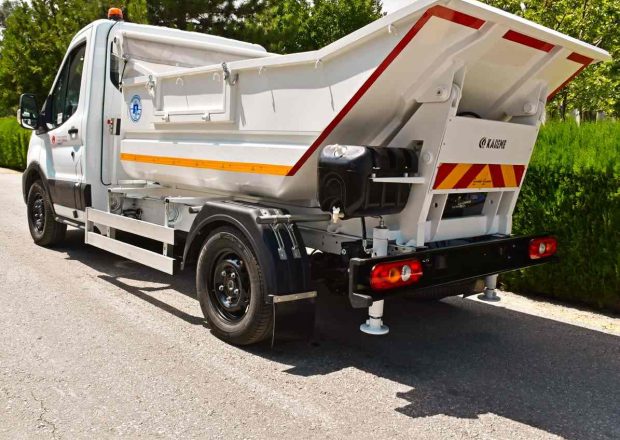

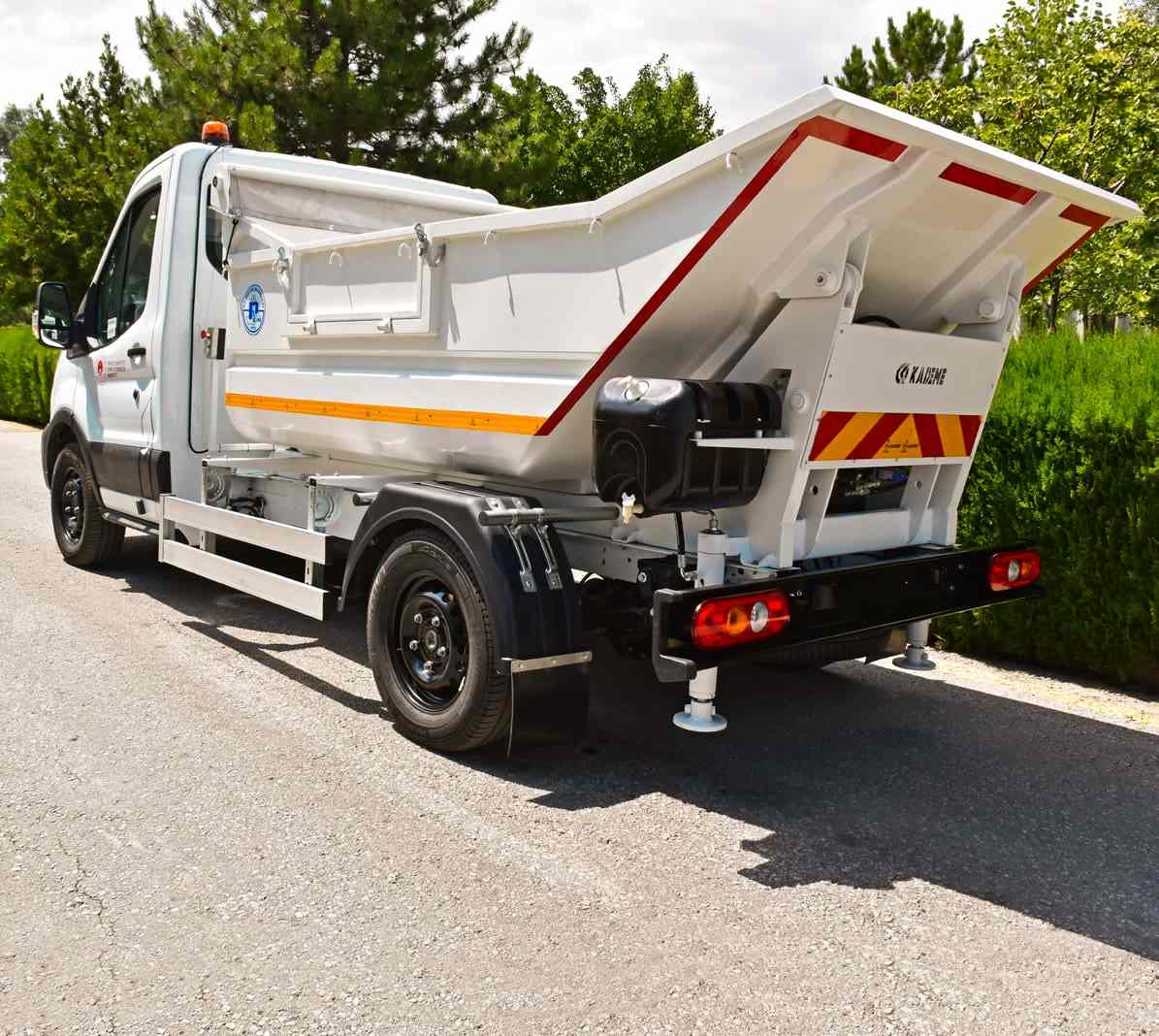

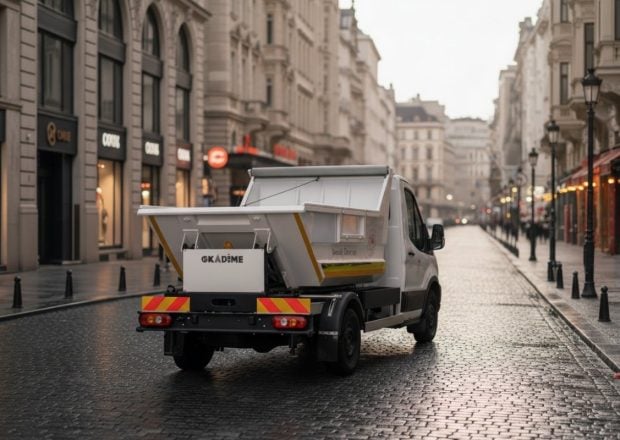

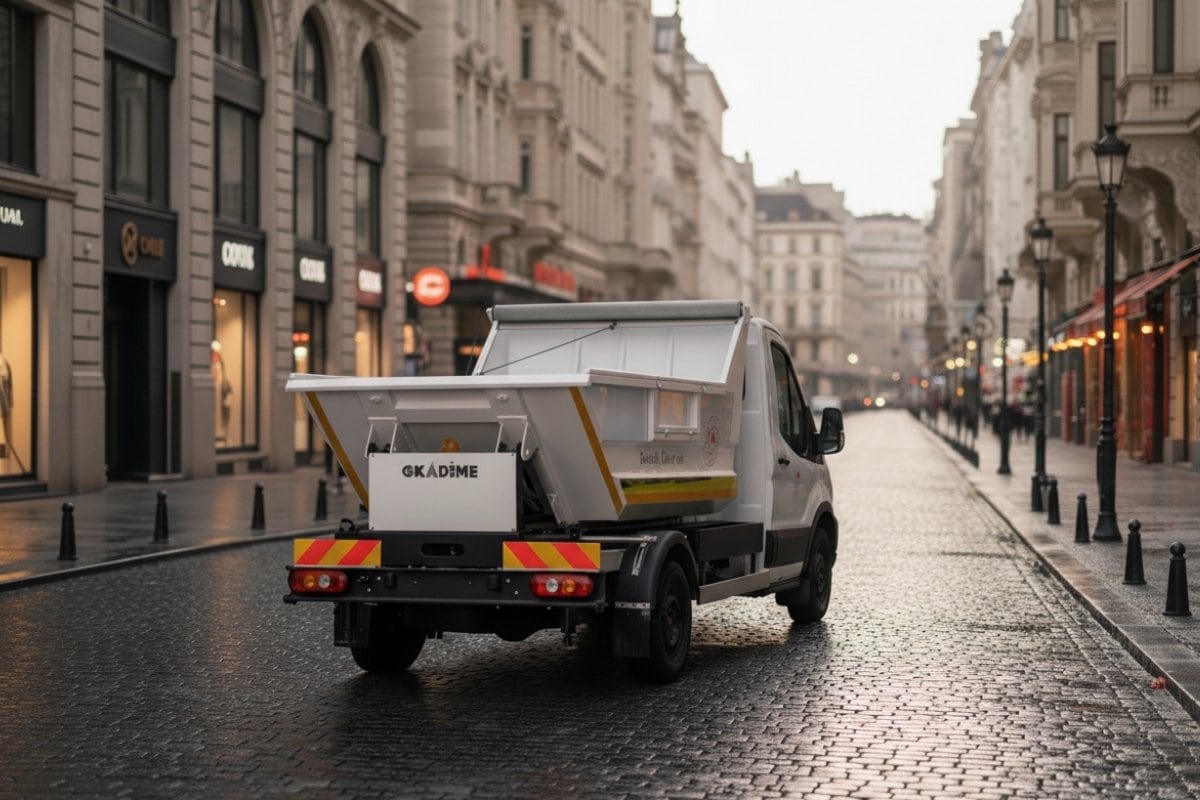

About the Mini Dumper Garbage Vehicle
With its compact design and high efficiency, the Mini Garbage Truck is the ideal solution for waste collection in narrow streets, city centers, parks and residential areas.
Commonly known as a "Garbage Taxi", this vehicle is widely used by municipalities and service providers thanks to its agility and its ability to collect small volumes of waste quickly and effectively.
General Features
Flexible Capacity Options
The mini garbage truck is available with body volumes ranging from 2 m³ to 5 m³. Depending on the model, the payload capacity varies between 750 kg and 2,000 kg.
Durable Steel Body
The floor is made from 3 to 4 mm and the side walls from 2 to 4 mm thick high-strength ST-52 steel. This durable structure ensures a long service life and resistance under tough working conditions.
Hydraulic System and Fast Discharge
The hydraulic system, powered by 12V or 24V DC, allows easy tipping with lift angles between 45° and 90°. Discharge time ranges from 24 to 40 seconds, enabling fast and efficient operation.
Compatibility and Vehicle Integration
The mini dumper system is compatible with a wide range of commercial vehicles. Recommended carriers include Ford Transit, Iveco Daily, Fiat Ducato and Hyundai H100. For 5 m³ models, larger vehicles such as Mitsubishi Fuso, Isuzu and Iveco Daily are suggested.
Bin Compatibility
The 5 m³ compacting model is designed to operate with standard waste bins of 120, 240, 480, 800 and 1,100 lt. Two stabilizing legs at the rear ensure balanced and safe loading and unloading.
Areas of Use
The Mini Garbage Truck is well suited to narrow urban roads, pedestrian areas, industrial zones, parks and gardens. It is also used in temporary cleaning operations and emergency tasks involving small-volume waste collection.
Why Choose the Mini Garbage Truck?
This compact waste solution handles big tasks in tight spaces. With quick discharge times, low operating costs and compatibility with various vehicle types, it ensures high efficiency in urban cleaning operations. Its rugged steel body and powerful hydraulic mechanism make it a reliable partner for municipal waste collection. Explore our other refuse equipments.
