Truck Mounted Sweepers

Road Sweeper 5,5 m³

Truck Mounted Vacuum Type Sweeper

5.5 m³Hopper Gross Volume
36,750 m²/hSweeping Capacity
2,450 mmSweeping Width
121 hpPower
Get a Quote Catalogue
WhatsApp +90 212 467 50 50
ISO 9001 CE certified 10-year spare parts Worldwide delivery
Videos and files

Road Sweeper 5,5 m³ at Work and in Service

Watch the vehicle in operation and see how routine service and maintenance are done.

Road Sweeper 5,5 m³ cataloguePDF
Kademe product brochureFull municipal range
Spare PartsOrder by serial number
Technical data

Road Sweeper 5,5 m³ Specifications

Download catalogue

Sweeping Equipment

Side Brush
Ø 450 mm - 200 rpm, hydraulic engine driven
Middle Brush
Ø 400 mm x 1,300 mm - 160 rpm, hydraulic engine driven
Suction Hose Diameter
Ø 250 mm
Suction Nozzle Width
750 mm
Sweeping Width
2,450 mm
Sweeping Capacity
36,750 m²/h

Capacity Information

Hopper Gross Volume
5.5 m³
Payload Volume
5 m³
Payload Capacity
3 - 4 ton (based on chassis)
Water Tank
1,550 lt stainless steel (AISI304) integrated with hopper
Hydraulic Tank
75 lt

Engine Information

Brand - Model
3.6 lt 4 cylinder water cooled Perkins diesel engineOption: 3.9 lt 4 Cylinder Water Cooled Tumosan Diesel Engine
Power
121 hp / 90 kW @ 2,400 rpmOption: 115 hp / 86 kW @ 2,300 rpm
Torque
500 Nm @ 1,550 rpmOption: 405 Nm @ 1,500 rpm
Emission
EU Stage VOption: EU Stage 3A
Engine Speed
1,550 – 1,750 rpmOption: 1,500 - 1,600 rpm

Fan

Type
Heavy duty, dynamically balanced impeller with multivane corrosion resistant blades
Fan Operation Speed
2,700 - 3,400 rpm (variable)
Drive System
Torque convertor or clutch system
Gearbox Ratio
1.8 : 1

General Information

Chassis Requirement
Min 12 tons
Wheelbase - Gross Vehicle Weight
3,300 - 3,500 mm (4x2)
Dump Angle
50° ± 5°
Door Opening Angle
90° ± 5°
Filter Mesh Area
1.1 m²
Hydraulic Pump
16.8 cc/rev
Sweeping Speed
0 – 15 km/h
Garbage Hopper Structure
Welded plain steel (stainless steel optional)
Cabin and options

Equipment

Standard equipment

  • Raised Hopper Warning
  • Auxiliary Engine Indicator
  • Engine Temperature Indicator
  • Engine Speed Indicator
  • Camera System
  • Low Level Water Indicator
  • Engine temperature indicator
  • Wander hose with boom and trunking excess 5 meters long
  • Additional water tank (In case of cabin and superstructure area is available)

Optional equipment

  • 5 m Wander Hose With Boom
  • Adjustable Side Brush Speed
  • Simultaneous Dual Suction and 3,500 mm Sweeping Width
  • Interior Trim
  • Variable Side Brush Positioning Inside Cabin
  • High Pressure Washing System (20 lt / 100 bar)
  • Front Bumper Road Washing System
  • Additional Water Tank AISI304 (if space between cabin and body allows)
  • Magnet

Ask our sales team for other configurations.

Overview

About the Road Sweeper 5,5 m³

Our 5.5 m³ vacuum street sweeper delivers high efficiency across a wide range of applications, from urban cleaning services to industrial facilities.

This system, which can be mounted on carriers with a minimum capacity of 12 tons, combines powerful vacuum performance, a wide sweeping area and low fuel consumption to offer both high performance and environmentally friendly operation.

General Features

Modular Superstructure Design

The modular superstructure design makes the sweeper compatible with various vehicle types and cleaning scenarios.

10% Inclined Stainless Water Tank

Positioned with a 10% incline under the hopper, the AISI 304 stainless steel water tank allows waste to slide out easily, speeding up the unloading process and reducing operator fatigue.

Durable and Maintenance-Friendly Fiber Panels

Fiber service panels located on both sides provide quick and safe access to the auxiliary engine and hydraulic systems without the need to lift the entire superstructure.

High-Pressure Washing System (20 lt / 100 bar)

The optional high-pressure washing system delivers efficient dust suppression with minimal water usage, supporting both environmental responsibility and resource optimization.

Ergonomic Control Panel and Portable Remote

The in-cabin control panel is intuitive and easy to use, giving the operator full control of the sweeper’s functions. A portable remote control allows external operation, enhancing flexibility during complex tasks.

User Comfort with Camera System and 7" Display

A rear-view camera paired with a 7″ in-cabin display ensures safe maneuvering and full visibility of the sweeping area, especially during tight operations or waste unloading.

Sweeping and Suction Systems

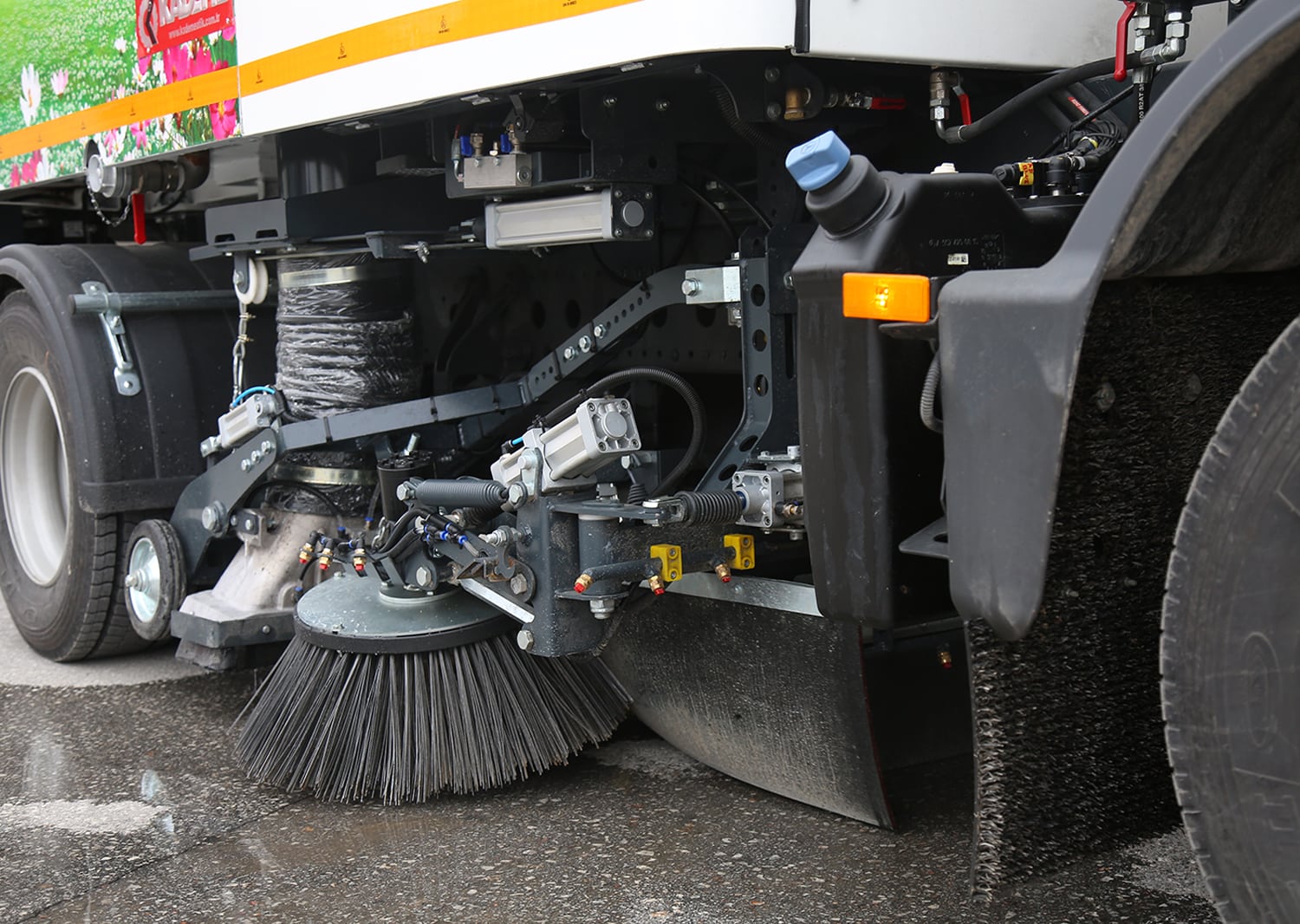

High-Performance Brushes

The Ø 450 mm side brushes and Ø 400 mm x 1,300 mm central brush operate at 200 and 160 rpm respectively. The standard sweeping width of 2,450 mm can be extended to 3,500 mm with the optional simultaneous dual suction.

Vacuum Hose and Suction Capacity

Equipped with a Ø 250 mm vacuum hose and a 750 mm wide suction nozzle, this street sweeper collects large debris efficiently. The system offers a sweeping capacity of up to 36,750 m² per hour.

Auxiliary Engine and Fan System

Powerful Perkins Diesel Engine (EU Stage V)

The 3.6 lt, 4-cylinder, water-cooled Perkins engine delivers 121 hp (90 kW) and 500 Nm of torque. Operating at low rpm for maximum fuel efficiency, it ensures quiet, eco-friendly performance compliant with EU Stage V emission standards. A 3.9 lt Tümosan diesel engine with 115 hp (86 kW) is available as an option.

Heavy-Duty Suction Fan

The dynamically balanced, multi-vane, corrosion-resistant fan operates between 2,700 and 3,400 rpm, generating powerful and stable vacuum suction. The system can be configured with a clutch or torque converter drive based on application needs.

Water and Hydraulic Capacity

Equipped with a 1,550 lt stainless steel water tank and a 75 lt hydraulic oil reservoir, the unit supports long operating times and demanding workloads.

Optional Equipment

The system can be equipped with a high-pressure washing system, a front bumper road washing unit, an additional AISI 304 water tank (if the cabin-to-body space allows), a 5 m rear suction hose with boom and a magnetic debris collector for added functionality.

Why Choose This Street Sweeper?

This vacuum street sweeper is a reliable and cost-effective solution for municipalities, industrial zones and professional contractors. Its robust construction, eco-friendly engine, operator-centric control systems and modular configuration options deliver excellent performance under varying conditions. With fast maintenance access, low operating costs, smart monitoring systems and safety-enhancing features like the camera and remote control, it provides a long-lasting, efficient and professional-grade cleaning solution. Explore our other truck mounted sweepers.
