Data
Technical Information
Chassis

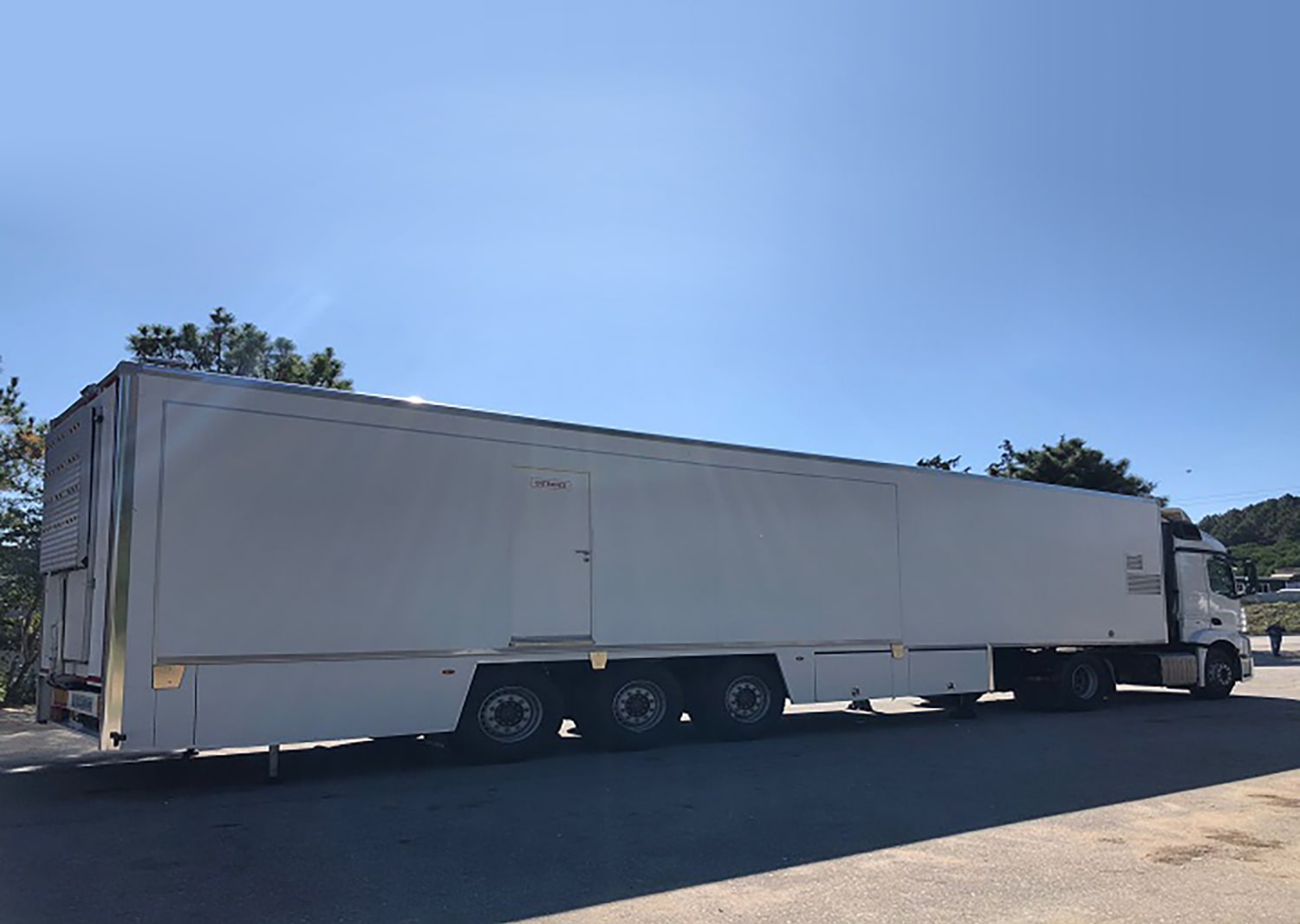

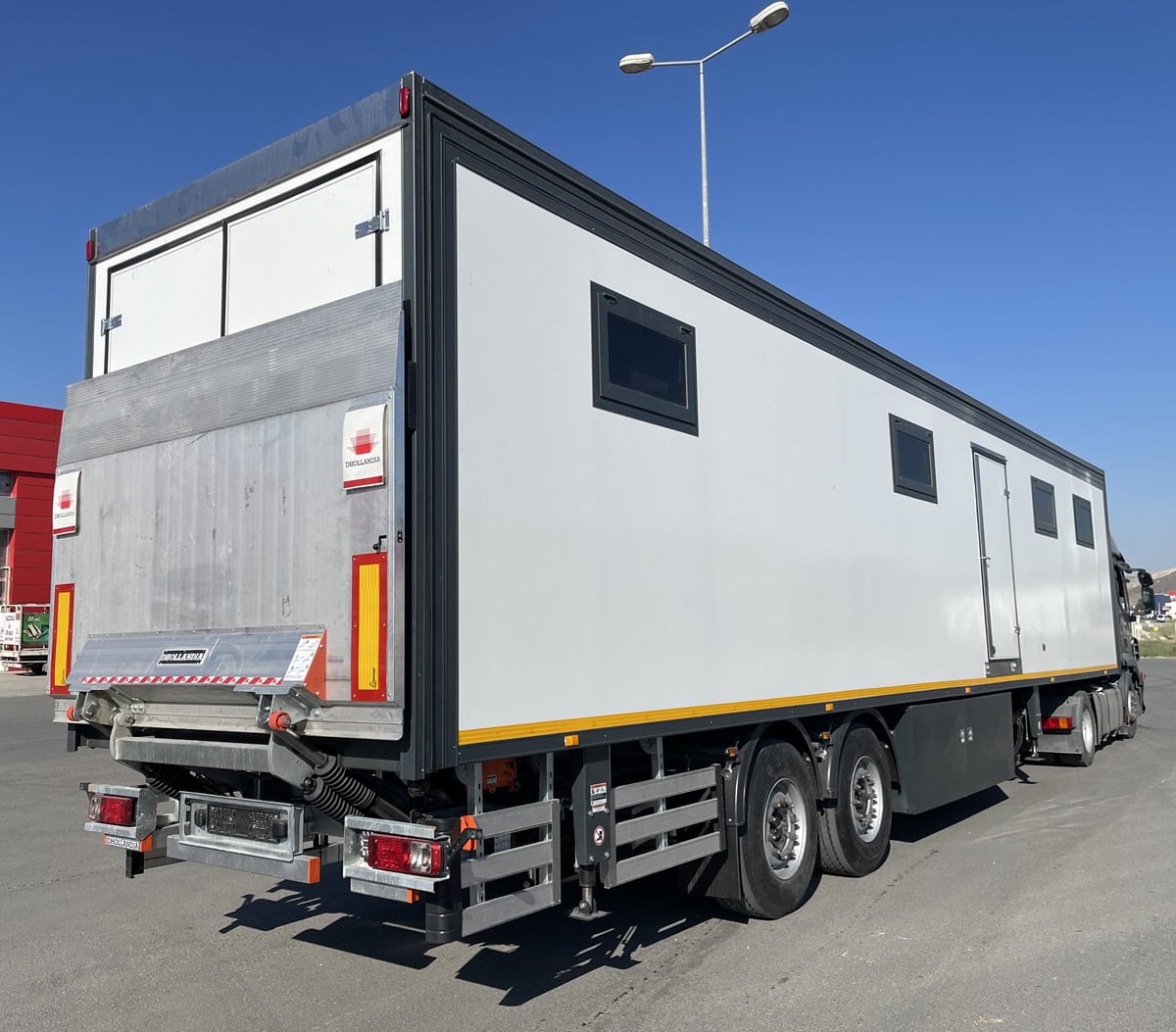

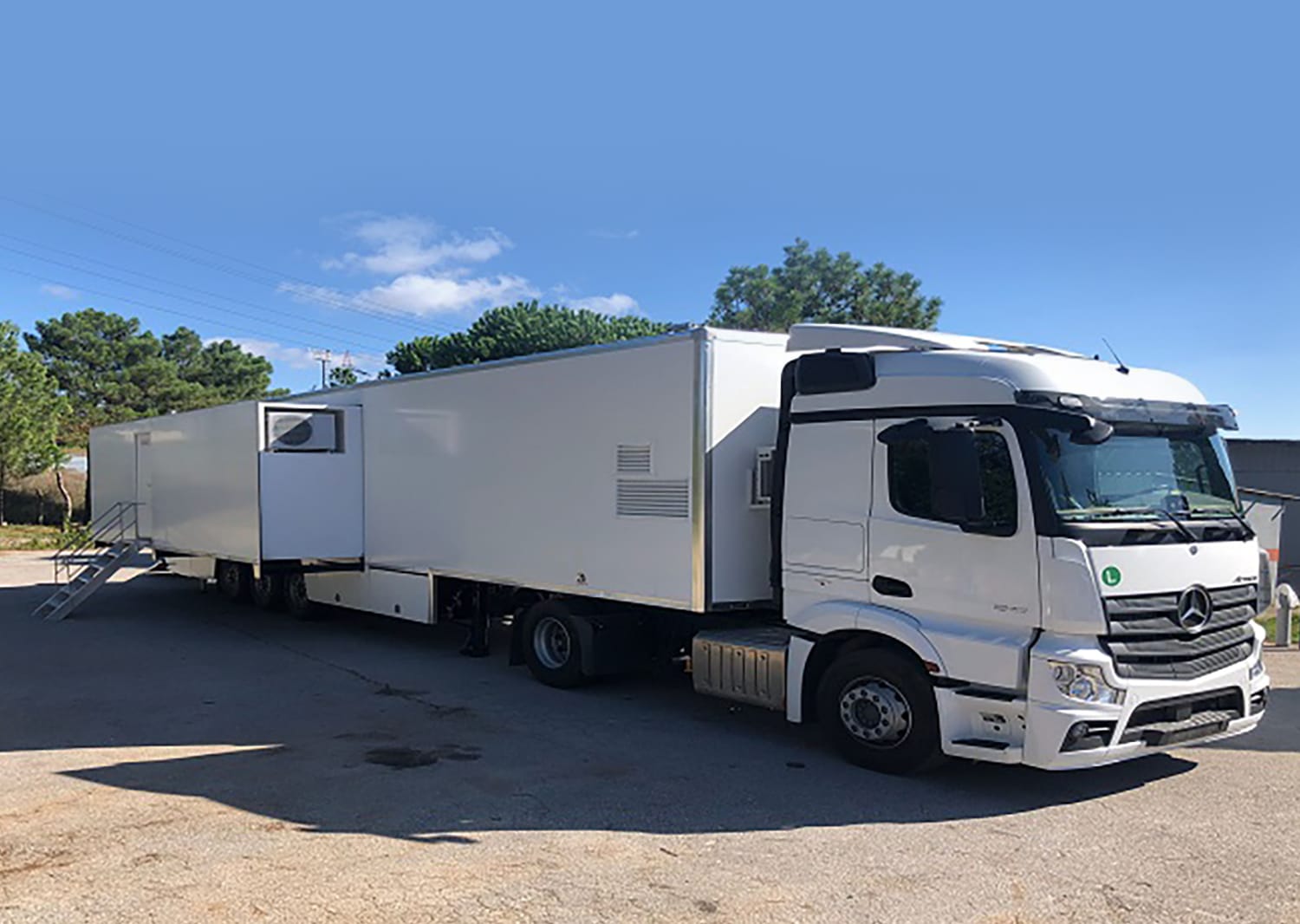

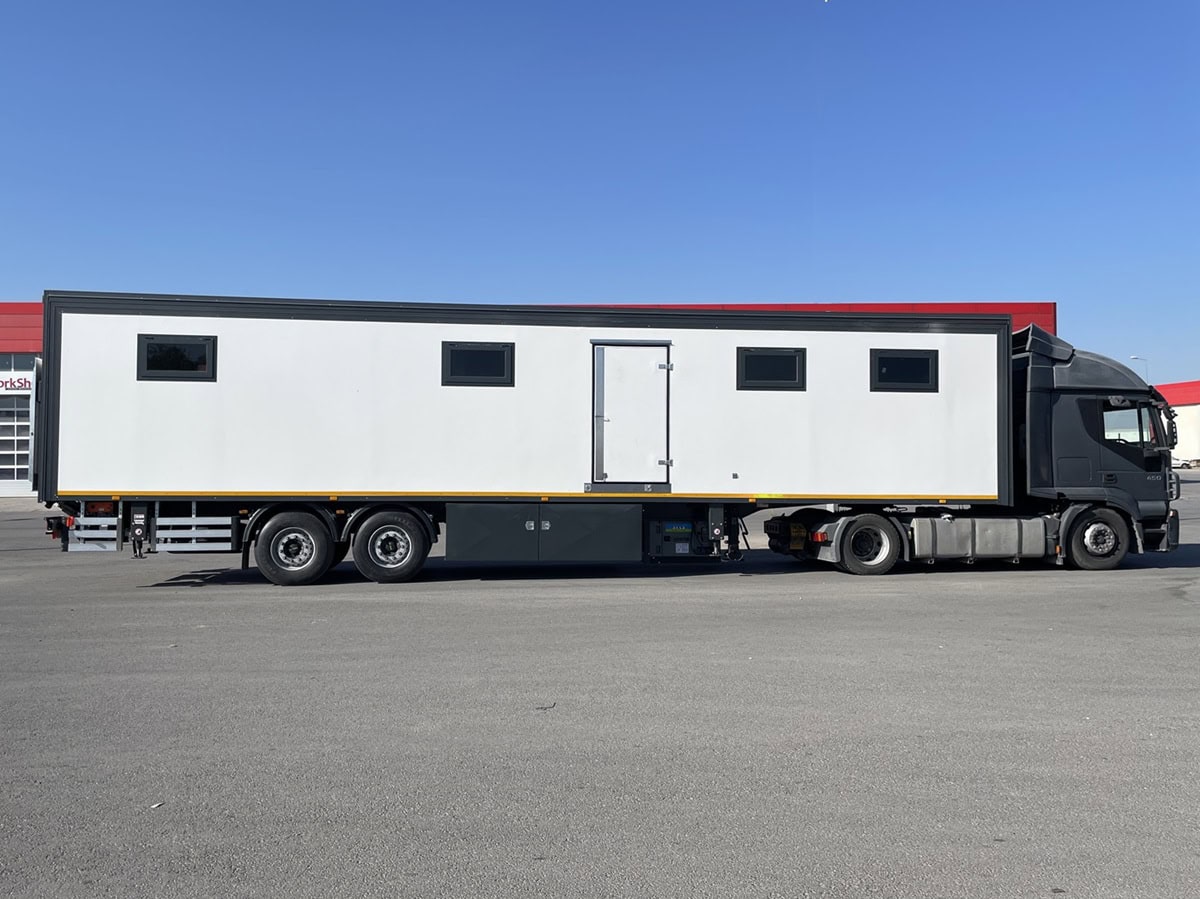

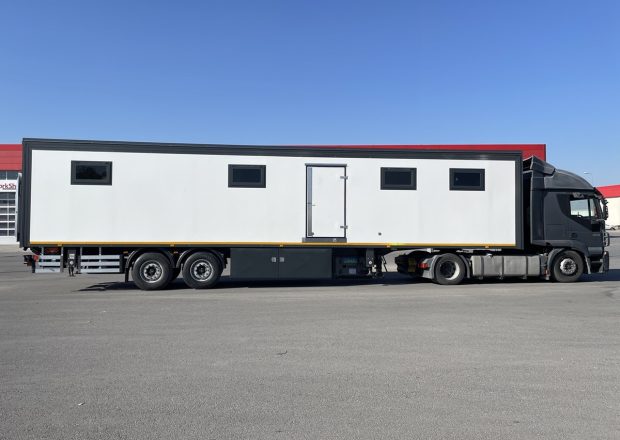

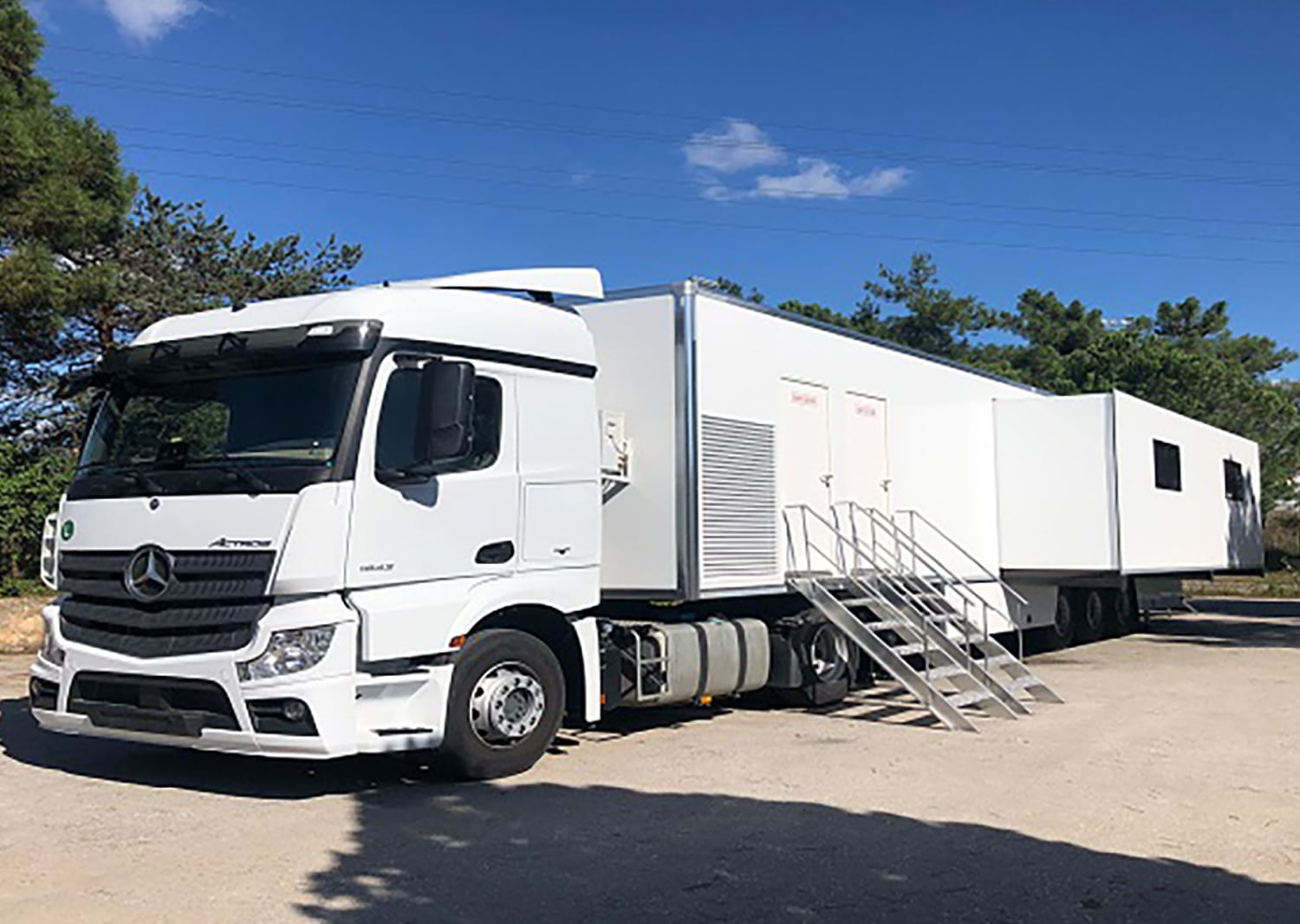

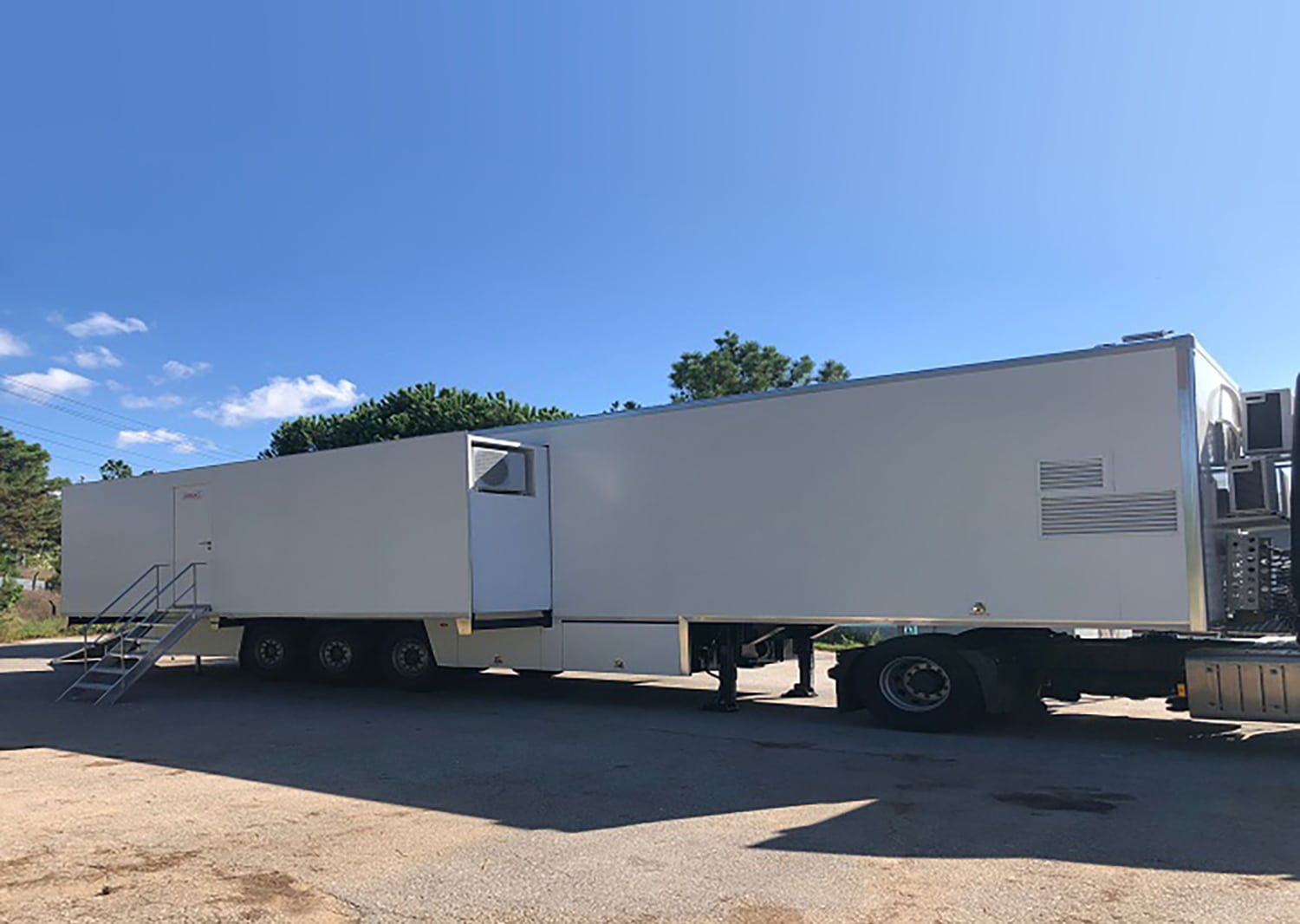

3-2 axles, 10500 - 13500mm trailer, special manufacturing of Project
Axles with air suspansion system.
Superstructure
We will manufacturing according to tender request
Uzunluk: 6.000-13.500mm
Genişlik: 2.550mm
Yükseklik: 4.000mm

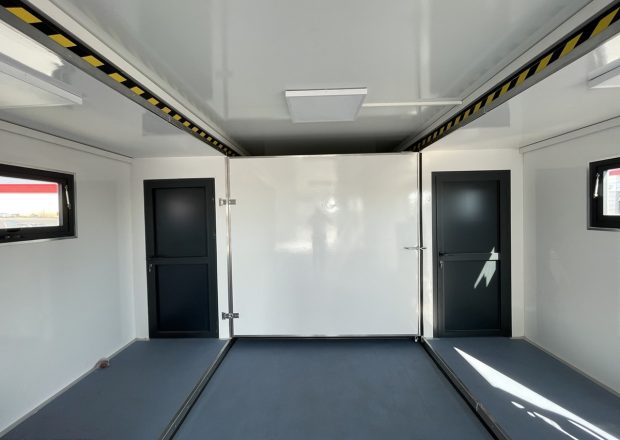

Body constructions will be manufactured NPU140 box profile
Floor 90mm sandvich panel with steel construction.
Floor 22 mm marine type plywood and anti bacterial pvc
Side walls 55 mm panel system, inner and outside 2,5mm CTP isolation
42 kg/m3 polyurethane or DOW
Roof 50 mm panel system
Inner side shock band.
Outside corners anodized aluminium profile
Left and right parking lamp
General boxes
100 lt clean - grey water tanks

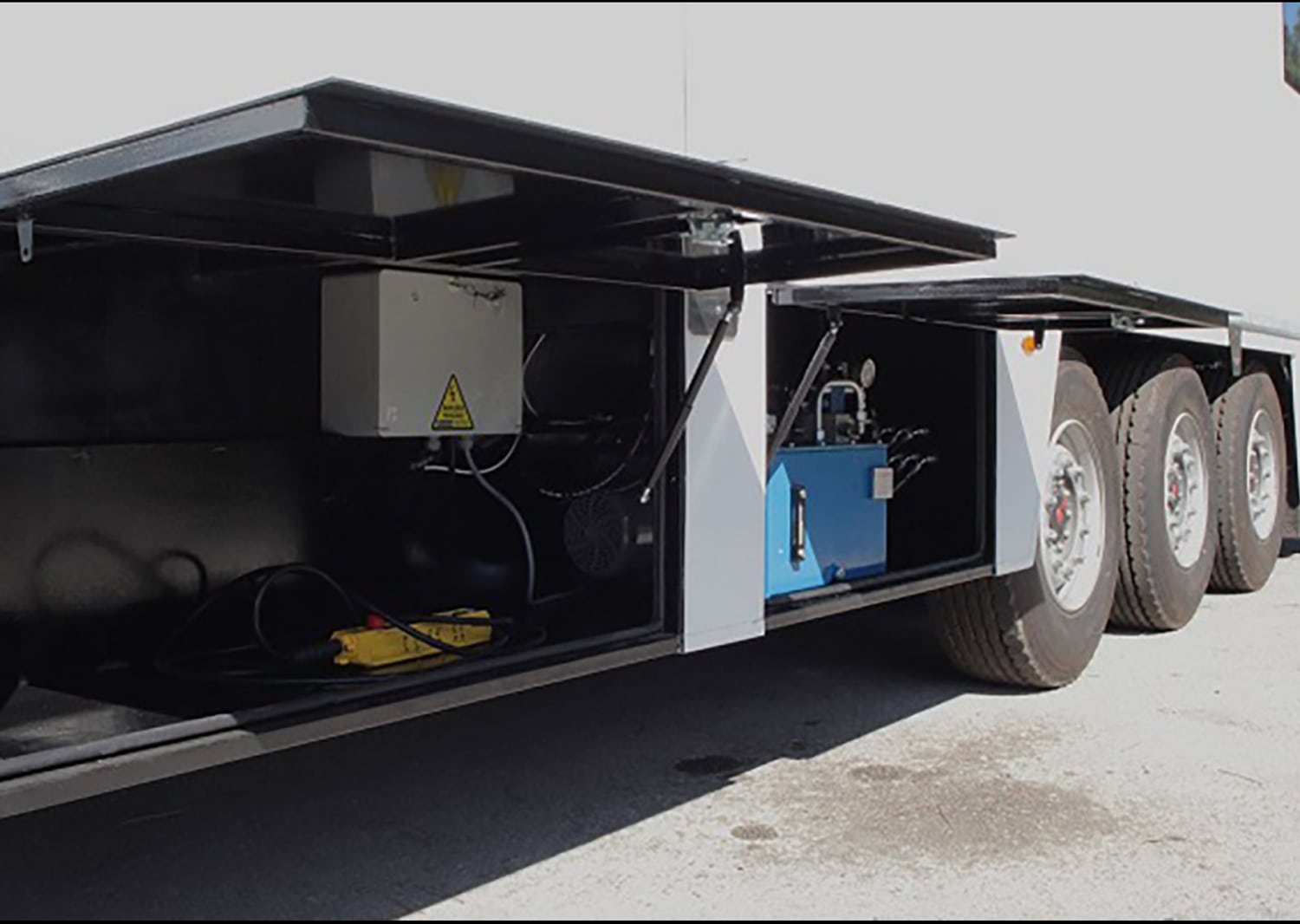

Hydraulic system installation (4 pcs side, 4 pcs floor fixing).

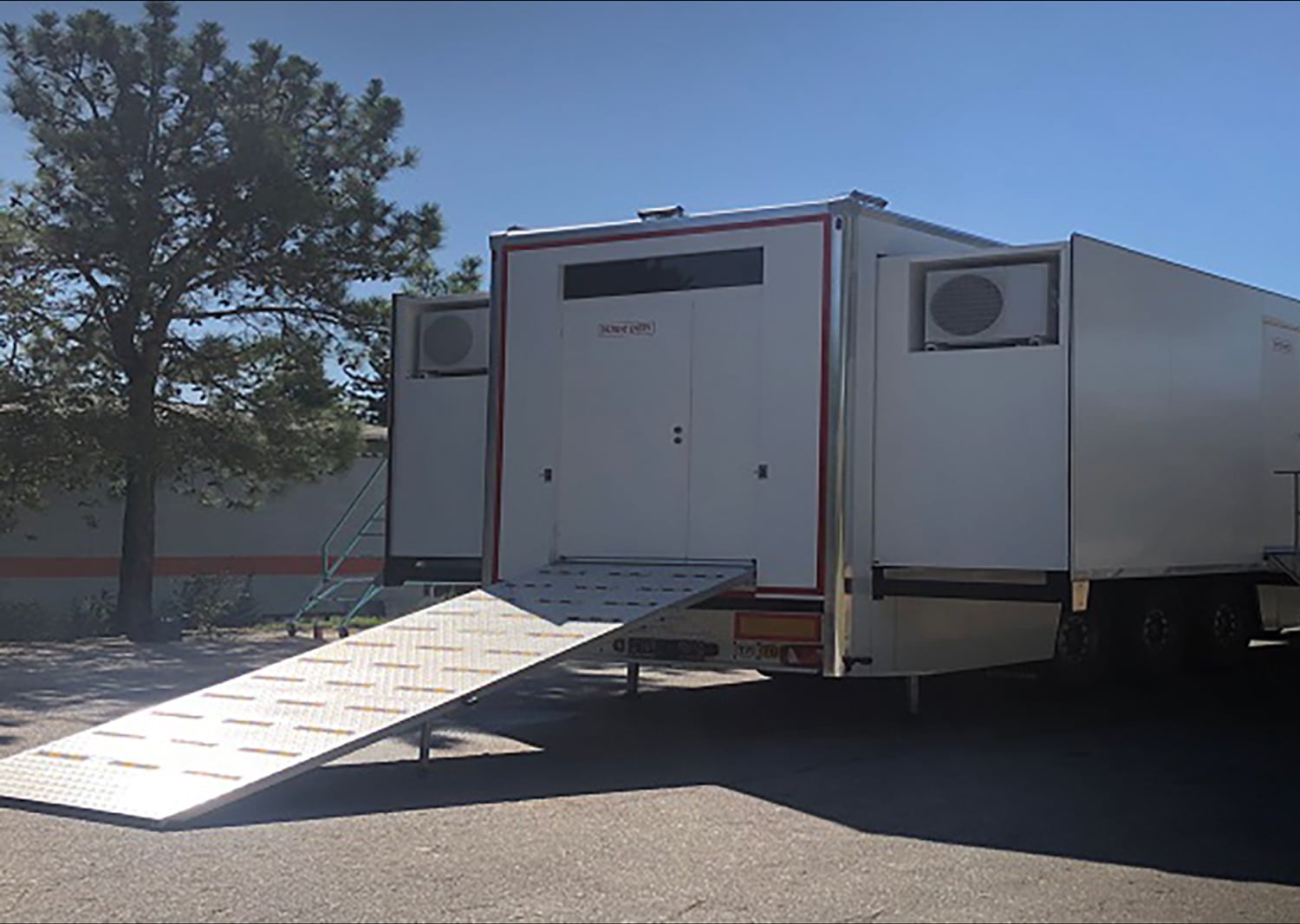

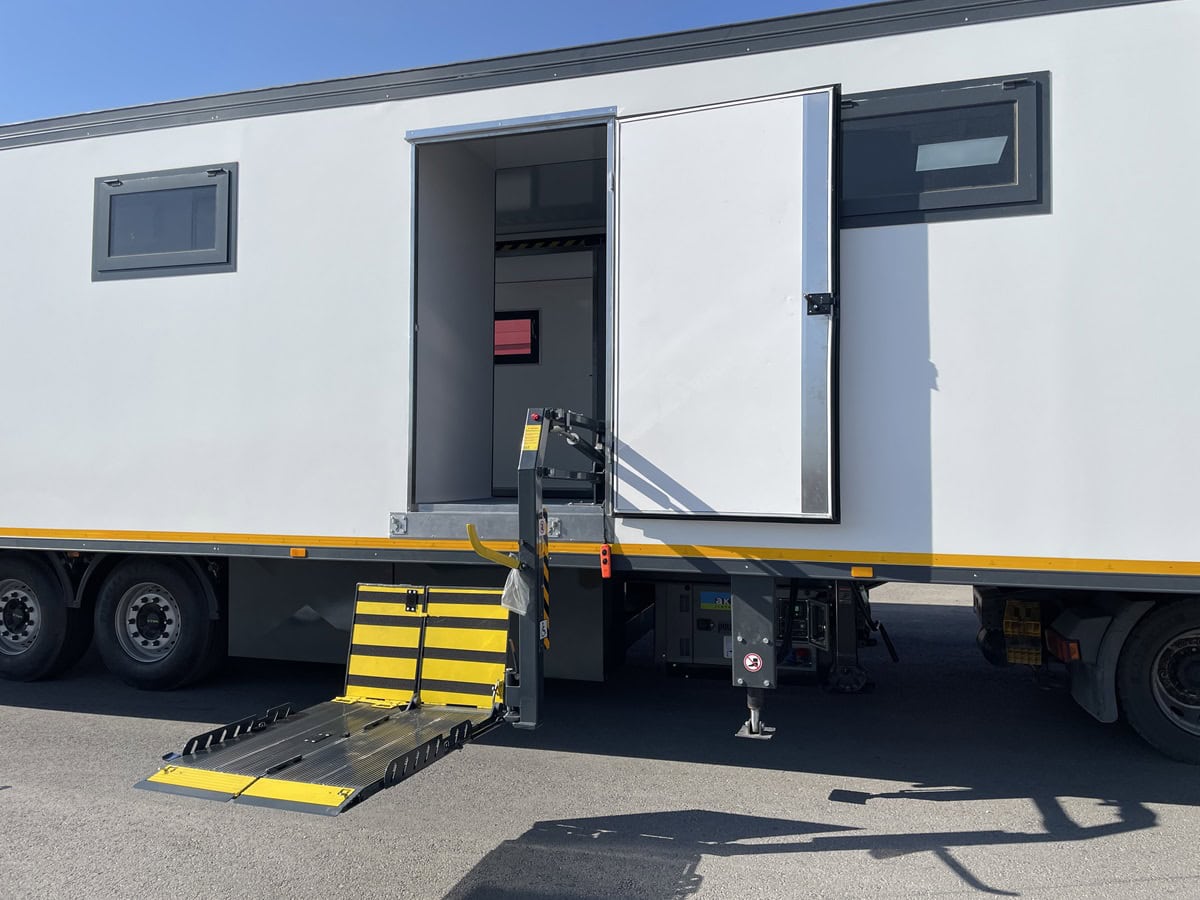

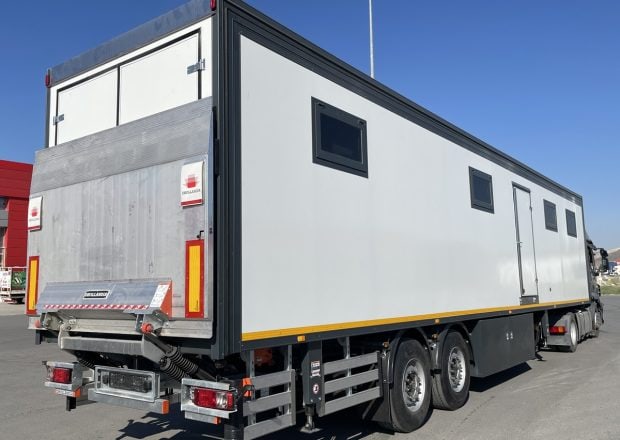

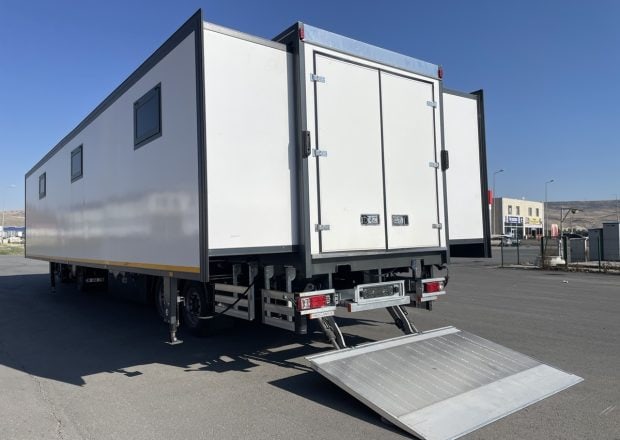

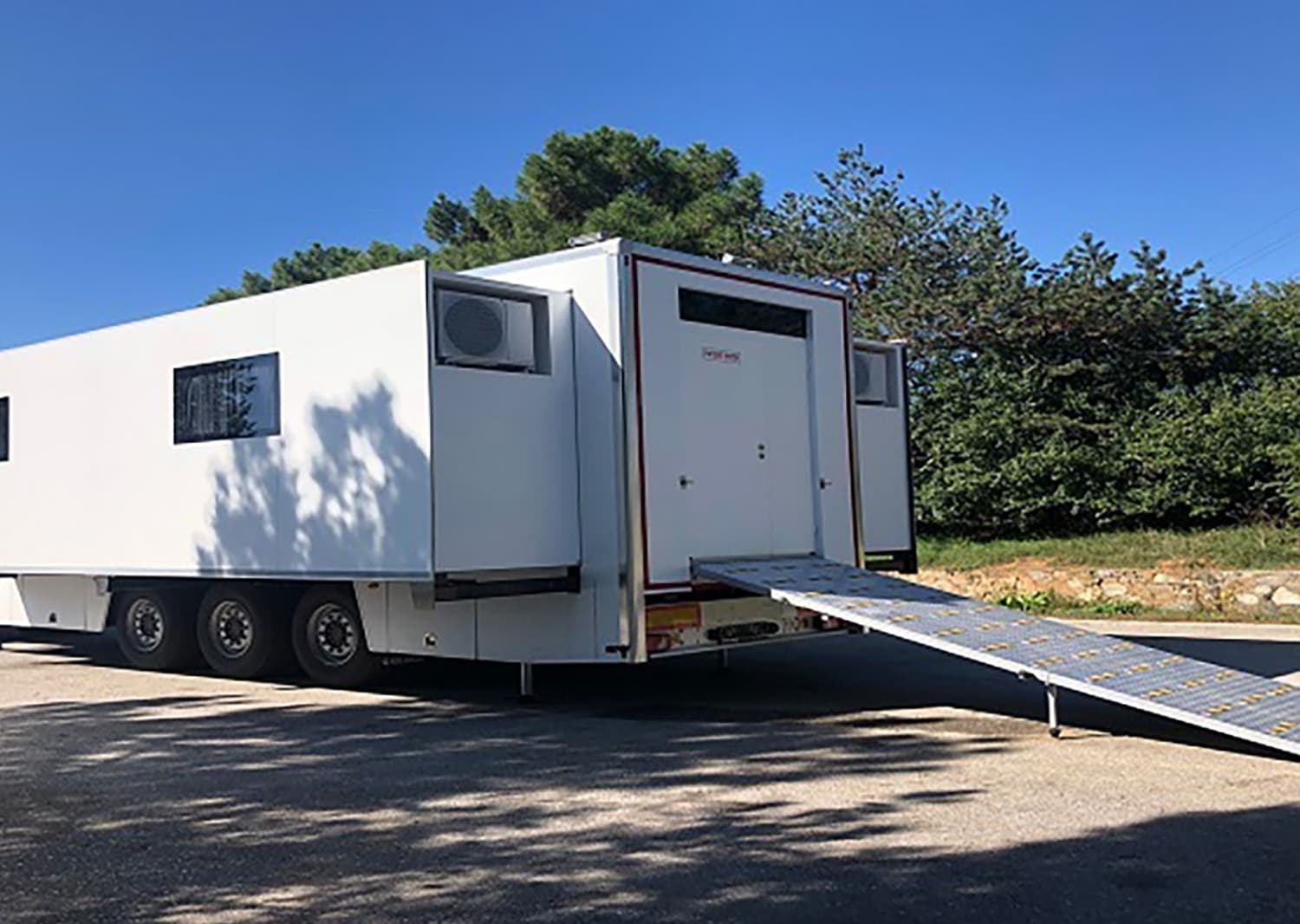

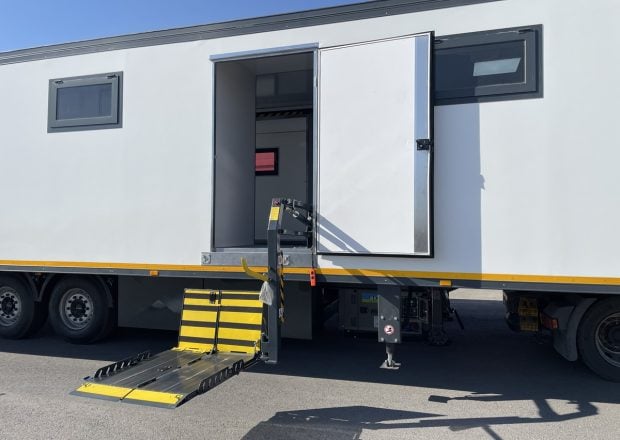

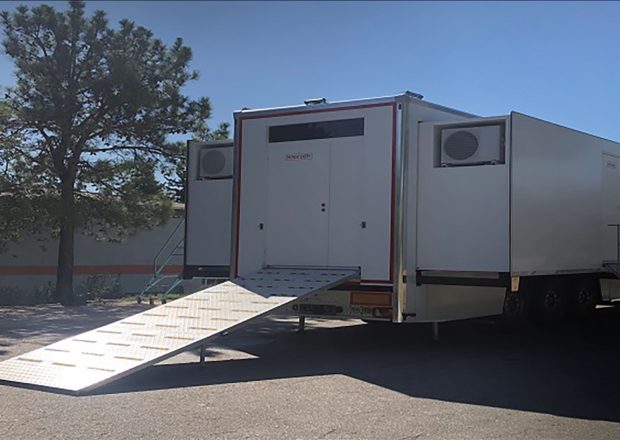

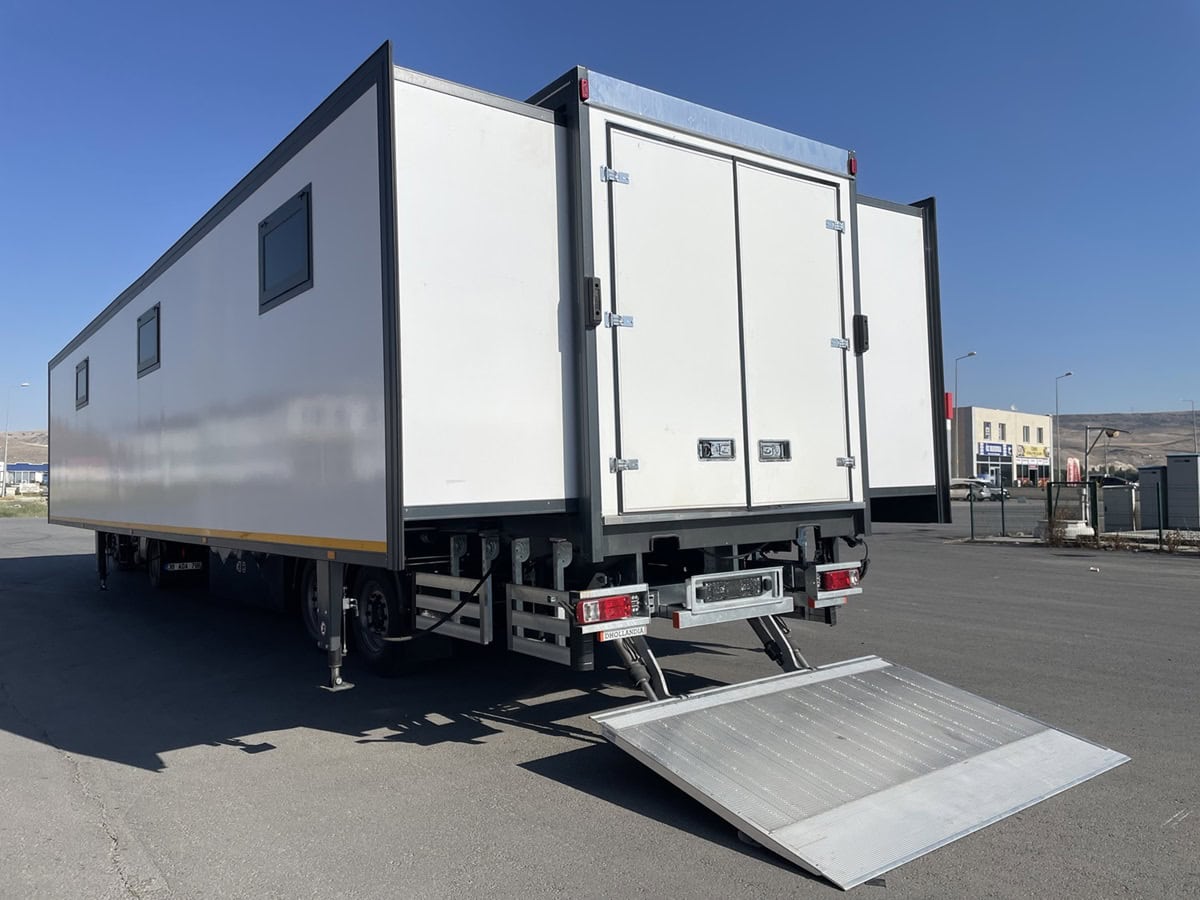

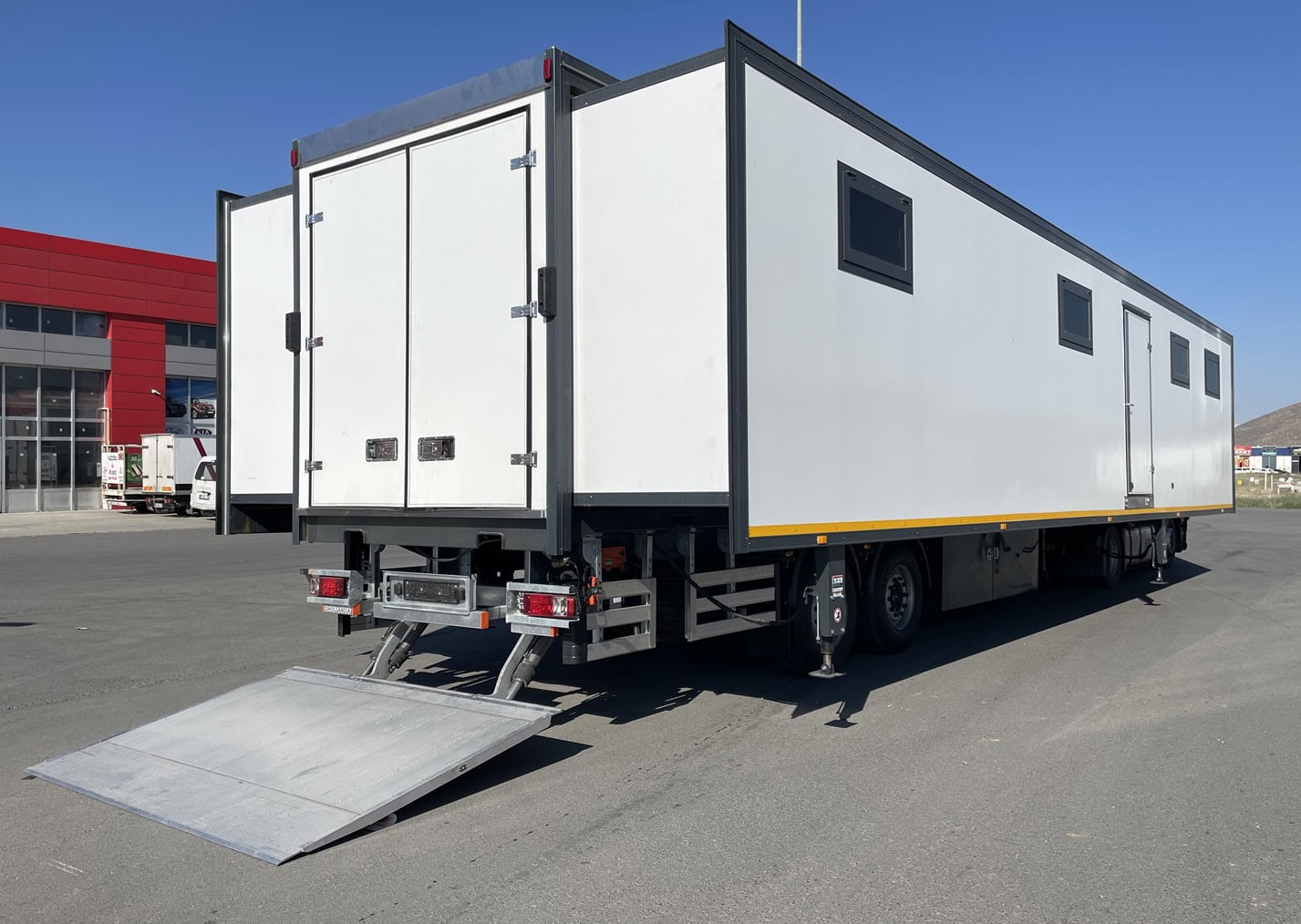

Hydraulic patient stretcher ramp system
Body side panels complate aluminium composite covering

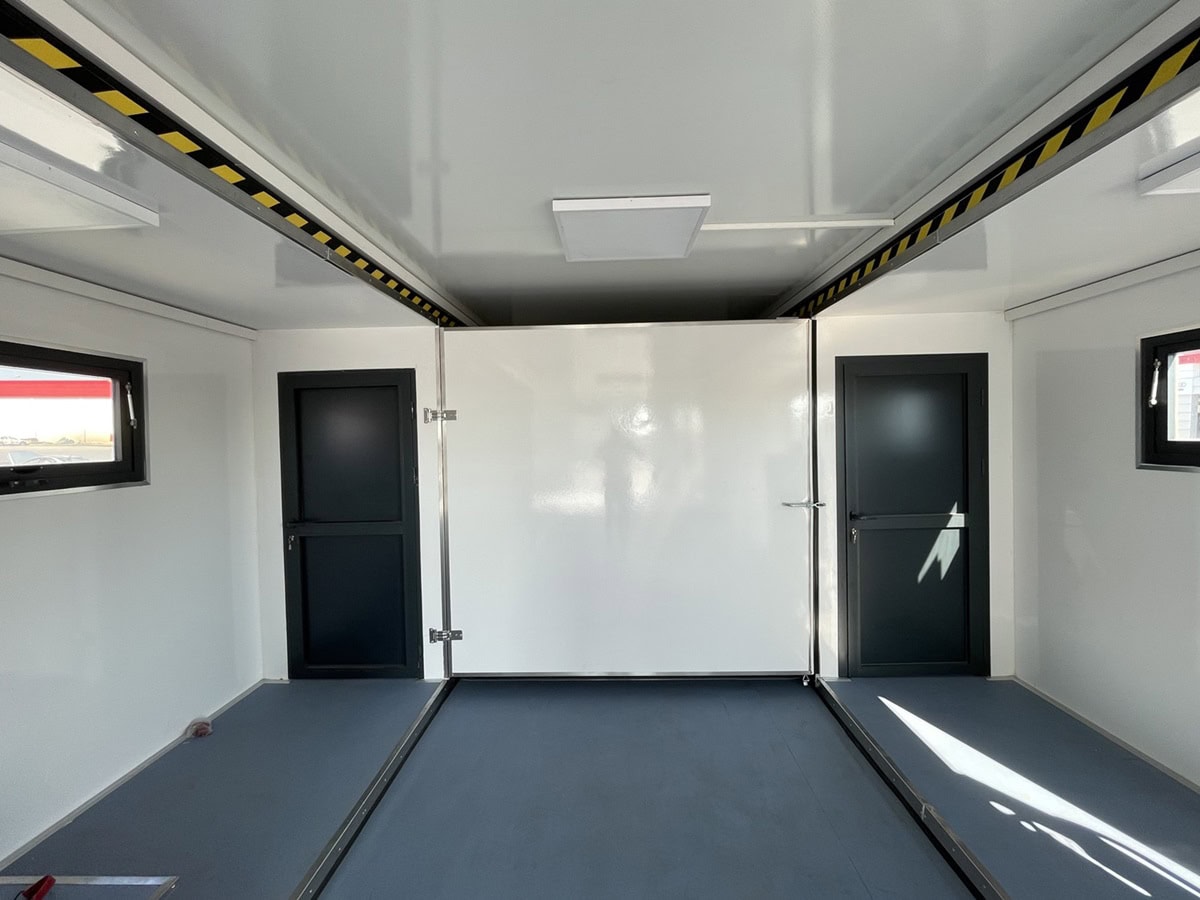

Floor inner side aluminum composite covering
Sockets
Led Lamb Units
5 Pieces Outdoor Led Lamps
6 pieces air conditioning unit
Fire resistant cables and materials
Wooden storage cabinets
