KDM 7,5 M³
Truck Mounted Vacuum Type Sweepers

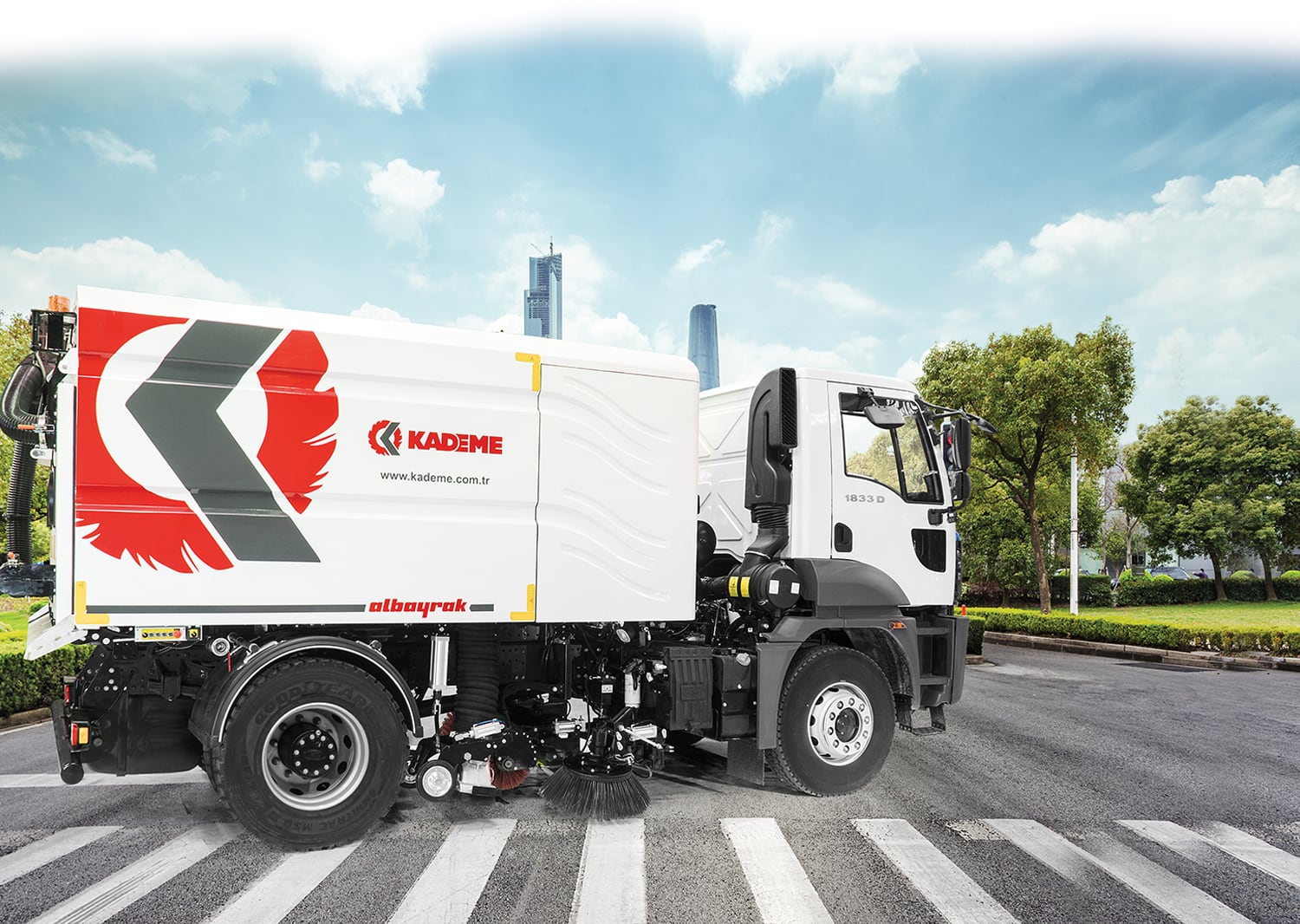

Vacuum Type Road Sweeper
The KDM 7,5m³ Vacuum Type Road Sweeper continues the tradition of successful sweeper technology and with high quality materials and components, we ensure operational reliability and long service life.
General Features
Suitable
Different size of vacuum type road sweepers from 4 cubic meters to 10 cubic meters can install to suitable carrier vehicles.
Efficient Irrigation
Standard high pressure water pump provides more efficient irrigation. It use less water with optimum water consumption level.
User Friendly
Easy to understand and user friendly control panel give advantage to the operator to control whole system.
Auxiliary Engine
Standard 115 Hp Auxiliary Engine generate enough power for vacuuming. 115 Hp Engine can generate necessary power with low operation rpm with low noise level and fuel saving.
Fiber Doors
Fiber doors on both size give easy access to the auxiliary engine in case of maintenance or break down.
Data
Technical Information
CAPACITY INFORMATION
Hopper volume
7,5 m³
Payload volume
7 m³
Payload capacity
4 - 5 tons (Based on Chassis)
Water tank
1.800 lt stainless steel (AISI304) integrated with hopper
Hydraulic reservoir
75 lt.
AUXILIARY ENGINE INFORMATION
Brand - Model
3.9 lt. 4 Cylinder water cooled Tumosan diesel engine
Power
115 hp / 86 kW @ 2.300 RPM
Torque
405 Nm @ 1.500 RPM
Emission
EPA Tier 3 and EU Stage 3A
Working speed
1.500 - 1.600 RPM
SWEEPERS EQUIPMENT

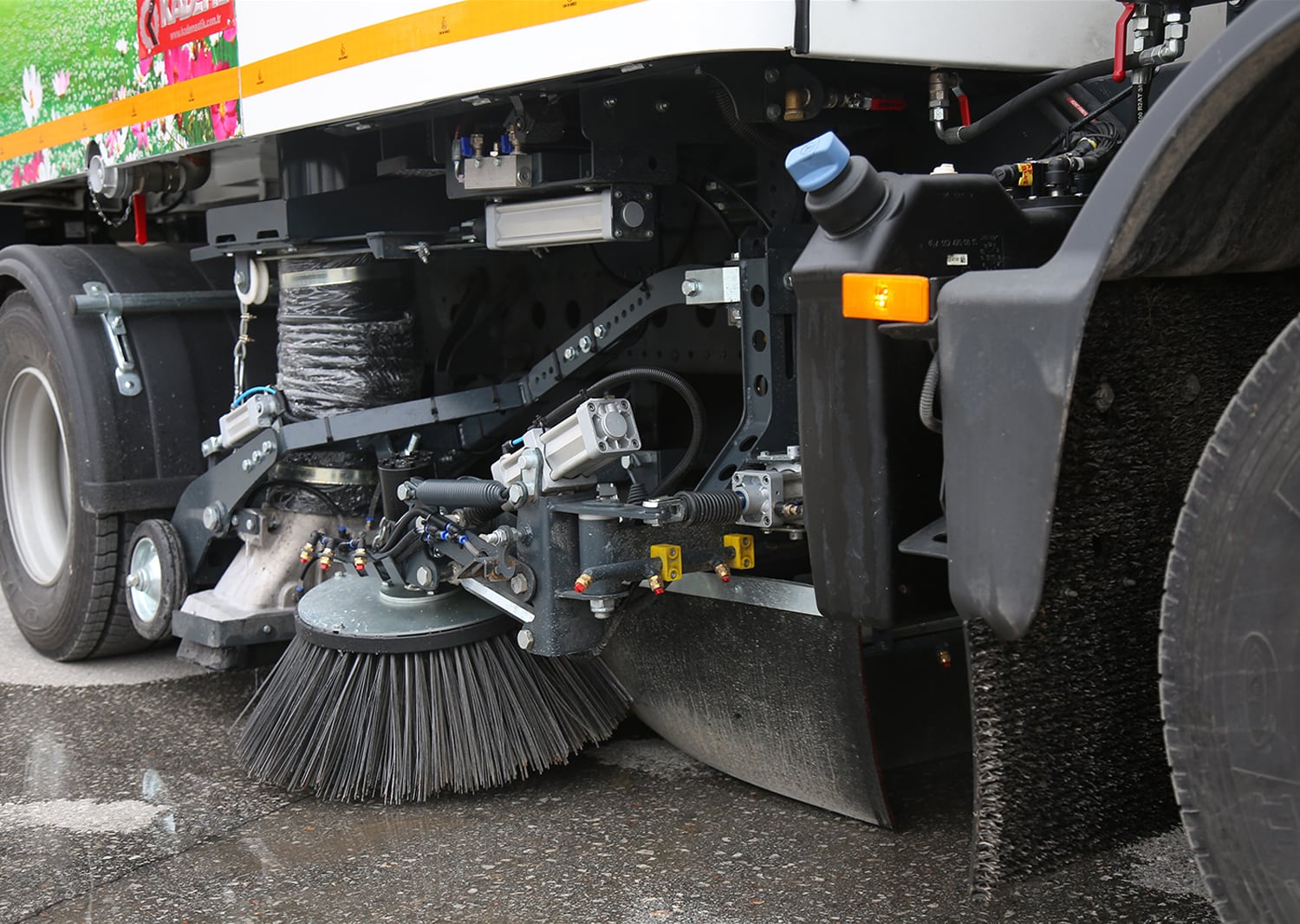

Side brush
Ø 450 mm - 200 dev / m. Hydraulic Engine Driven
Middle brush
Ø 400 mm x 1.300 mm - 160 dev / m. Hydraulic Engine Driven
Vacuum hose diameter
Ø 250 mm
Vacuum nozzle width
750 mm
Sweeping width
2.450 mm
GENERAL INFORMATION
Chassis requirement
Minimum 18 ton
Whellbase (ideal)
3.600 - 3.900 mm (4x2)
Dump angle
50° ± 5°
Door opening angle
90° ± 5°
Filter mesh area
1,1 m²
Hydraulic pump
16,8 cc / rev
Sweeping speed
0 - 15 km/h
Sweeping capacity
36.750 m²/h
Hopper construction
Welded plain steel (Stainless steel optional)
FAN
Type
Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades
Fan operation system
2.700 - 3.400 dev/m
Drive system
Torque convertor or clutch system
Gearbox ratio
1,8 : 1
CONTROL PANEL
Raised hopper warning
Auxiliary engine hour control
Engine temp hour
Engine speed hour
Camera system
Low level water indicator
OPTIONS

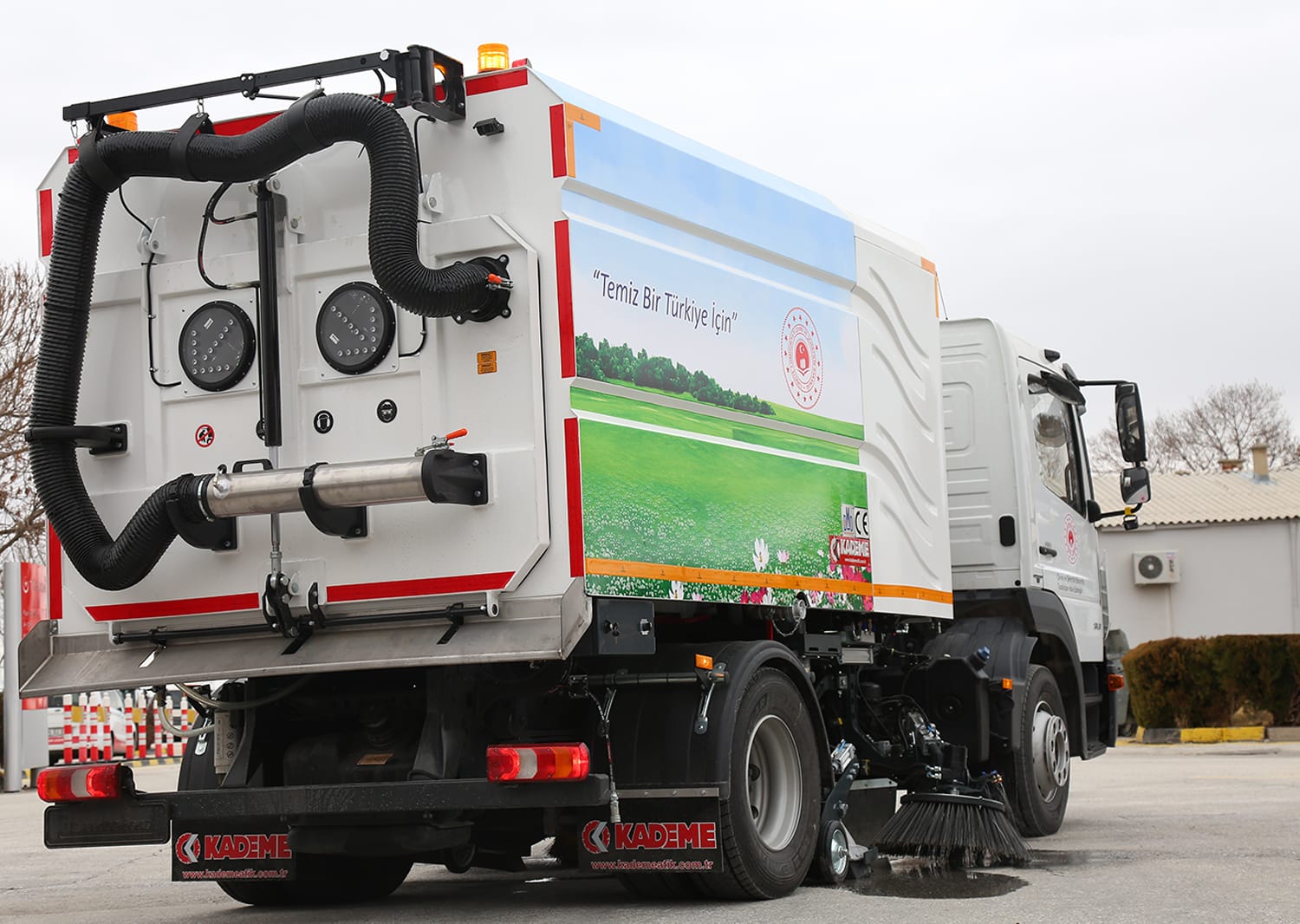

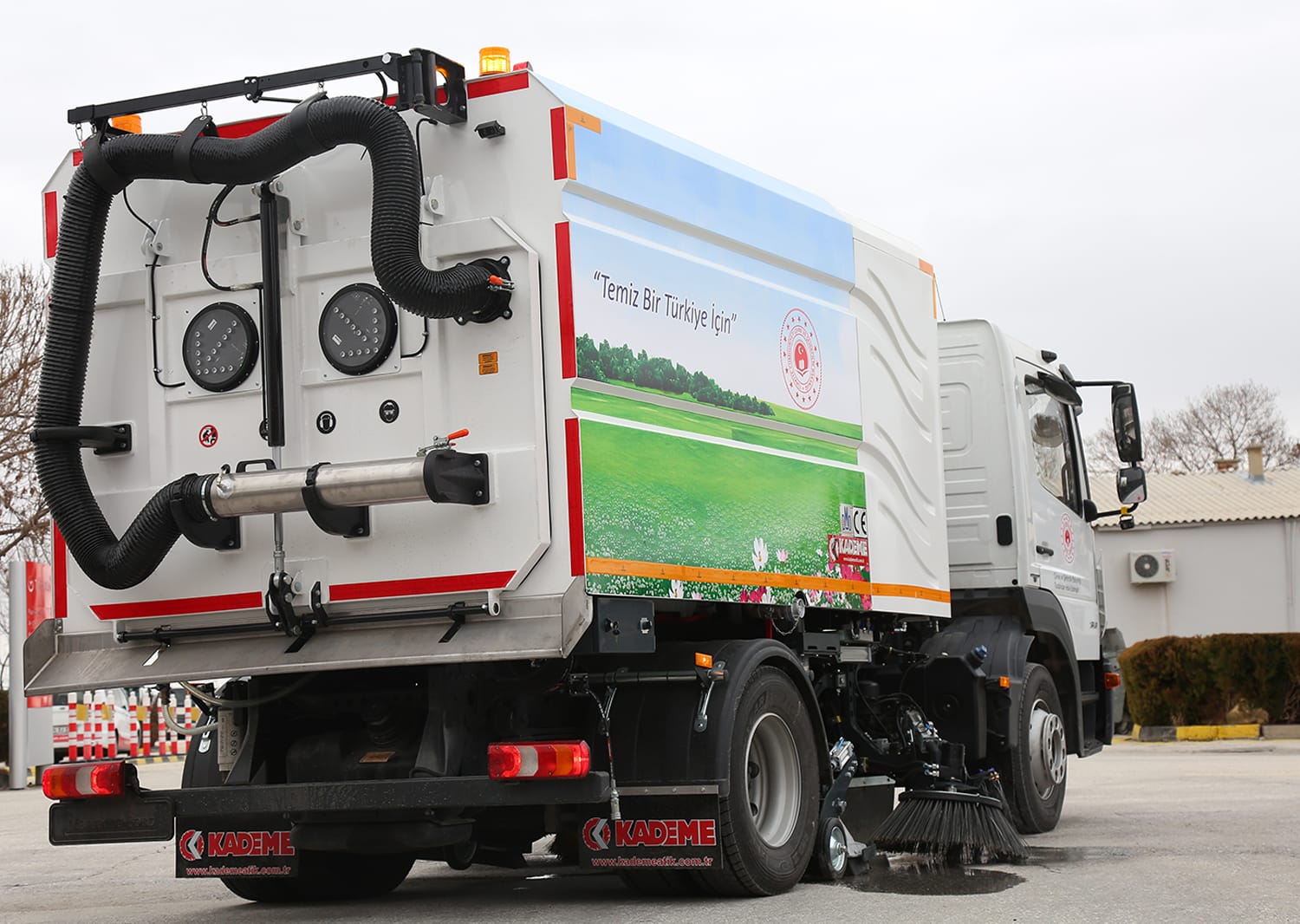

Wander hose with boom and trunking excess 5 meters long
Adjustable side brush speed
Simultaneous dual suction and sweeping 3.500mm sweeping width
Interior trim
Variable side brush positioning system
High pressure washing system
Front bumper road washing
Additional water tank (In case of cabin and superstructure area is available)
Magnet
