Data
Technical Information
CAPACITY INFORMATION
Hopper gross volume
2,9 m³
Hopper net volume
2,5 m³
Fuel tank
65 lt
Payload capacity
1.700 kg
Water tank
450 lt
Hydraulic tank
130 lt
ENGINE INFORMATION
Brand - Model
3.9 lt. 4 Silindir Su Soğutmalı Tümosan Dizel Motor
Power
85 hp / 63 kW @ 2.300 RPM
Torque
330 Nm @ 1.500 RPM
Emission
EPA Tier 3 and EU Stage 3A
Working speed
1.500 RPM
SWEEPING EQUIPMENTS
Front brush
Ø 400 mm (0 - 150 dev / dk. Hidrolik motor tahrikli)
Suction hose diameter
Ø 200 mm
Suction nozzle width
650x400 mm
Sweeping width
1.500 mm - 1.900mm (3. fırça ile 2.750mm)
Sweeping capacity
0 - 22.500 m²
variable and adjustable brush speed
GENERAL INFORMATION
Tire size
195 / 80 R15
Wheelbase - Gross Vehicle Weight
2050 mm / 4.800 kg
Dump height and angle
1.400 mm
Vacuum filter mesh area
0,5 m²
Hydraulic filtration
100 mikron emiş / 20 mikron dönüş
irrigation pump information
11 lt. / 4 bar 24V
climbing ability
27%
garbage hopper structure
Aluminyum (ALMG3)
Süpürme ve seyir hızı
0 - 15 km/h ve 25km/h
Brake
Hidrolik tip ön ve arka dinamik fren sistemi
Suspension system
hidropnömatik süspansiyon sistemi
vehicle curb weight
3.100 kg
wall to wall turning diameter
6.700mm.
Çöp tankı tabanı, yatayla yaptığı açı
95° ± 5°
Able to dump to garbage compactor tailgate and 1.100 lt garbage container directly
FAN
Type
Dinamik balansı alınmış ve paslanmaya karşı dirençli ağır hizmet fanı
Operation speed
3000 - 4000 RPM
Fan air flow capacity
8.500 m³/h
Construction material
Paslanmaz çelik (AISI304) / Stainless steel (AISI304)
CABIN - CONTROL PANEL

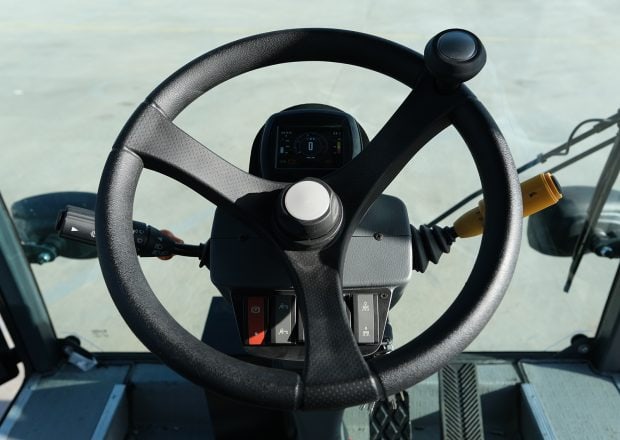

Adjustable and telescopic hydraulic steering wheel
Single seat ergonomic cabin
In cabin climate control with air condition
Tiltable cabin for easy service access
Radio and CD player
Engine RPM display
Engine operating hours
Water tank level indicator
Fuel level indicator
Camera system with in cabin 7" screen, rear view and suction nozzle cameras
bar water pump with high pressure washing gun (15 lt. / 150 bar)
Garbage hopper lift audible warning
Camera control system
Front wheel maneuverability
OPTİONS
rear suction hose 4mt.
Snow blade
Snow sweeping brush
Front third brush
15lt / 150 bar high pressure pump with 10mt hose and washing gun
Magnet
Sprinkling salt
