Name: Kademe Truck Towed Road Sweeper | URAL
Brand: Kademe

Videos and files

URAL at Work and in Service

Watch the vehicle in operation and see how routine service and maintenance are done.

URAL cataloguePDF

Kademe product brochureFull municipal range

Spare PartsOrder by serial number

Technical data

URAL Specifications

Download catalogue

Sweeping Equipment

Side Brush: Ø 1,000 mm, hydraulic engine driven, 0-150 rpm
Rear Brush Diameter: Ø 900 mm, hydraulic engine driven, 0-200 rpm
Rear Brush Length: 1,150 mm
Number of Water Nozzles: 14 (front: 8, rear: 6)
Water Pump: 20 lt/min (max 100 bar)
Sweeping Width: 3,000 – 3,200 mm
Sweeping Capacity: 70,400 m²/h

Capacity Information

Water Tank: 1,200 lt (2 pieces 600 lt)
Hydraulic Tank: 200 lt
Fuel Tank: 200 lt

Engine Information

Brand - Model: 3.9 lt 4 cylinder water cooled Tümosan diesel engine
Power: 95 hp / 70 kW @ 2,300 rpm
Torque: 365 Nm @ 1,500 rpm
Emission: Tier 3 and EU Stage 3A
Engine Speed: 1,500 – 1,600 rpm

Optional Engine

Brand - Model: 4.4 lt 4 cylinder turbo water cooled Perkins diesel engine
Power: 130 hp / 97 kW @ 2,200 rpm
Torque: 500 Nm @ 2,200 rpm
Emission: EU Stage 2

Elevator

Number of Elevator Belts: 3 strip toothed rubber belts
Number of Elevator Scrapers: 24 pieces rubber scrapers
Width of Transport Belt: 700 mm
Length of the Elevator Belt: Approximately 3,800 mm

General Information

Tire Size: 225 / 75R 17.5
Sweeping Speed: 22 km/h
Machine Length: Max 6,800 mm
Machine Width: 2,800 mm
Dump Height: 2,700 – 3,200 mm
Vehicle Curb Weight: Approximately 4,000 kg
Maximum Transportation Speed: 40 km/h
Air Filter: Oil bath air filter
Axle Shaft: Hydraulic braking system
Towbar: Hydraulic operated up/down for disconnection of sweeper
Feeding in Screw: Hydraulic drive
Conveyor: Rubber belt with ribs, width 700 mm
Lifting Pins Height: Approximately 1,470 mm
Hydraulic Pump Flow Rate: 105 lt/min
Working Pressure: 190 bar
Suspension: No suspension system

Cabin and options

Equipment

Standard equipment

Comfortable Remote Control From Driver Cab
Light On/Off Button
Engine Start/Stop Button
Sweeping Start/Stop Button
Variable Speed Conveyor

Optional equipment

Can Be Produced With 2 or 3 Wheels

Ask our sales team for other configurations.

Overview

About the URAL

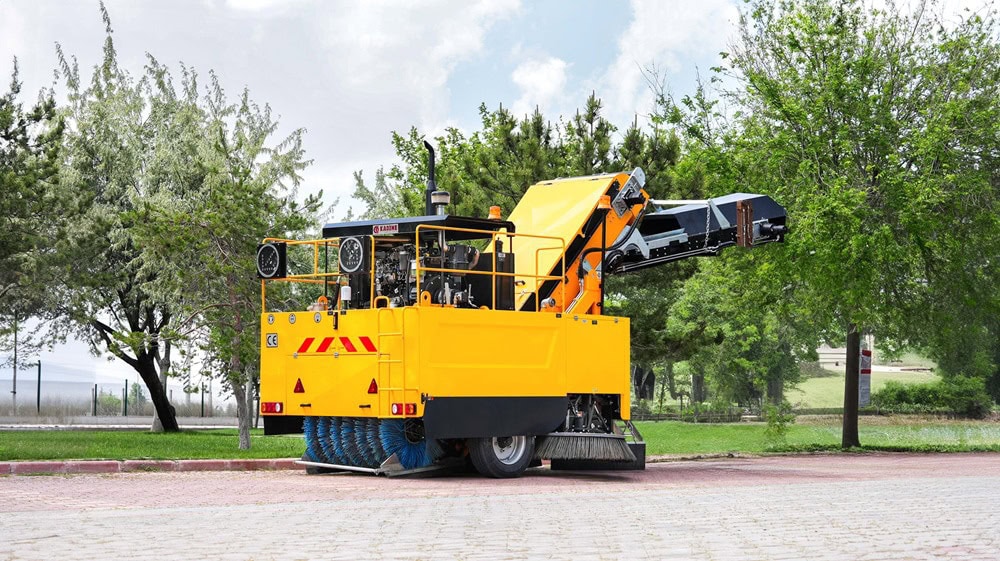

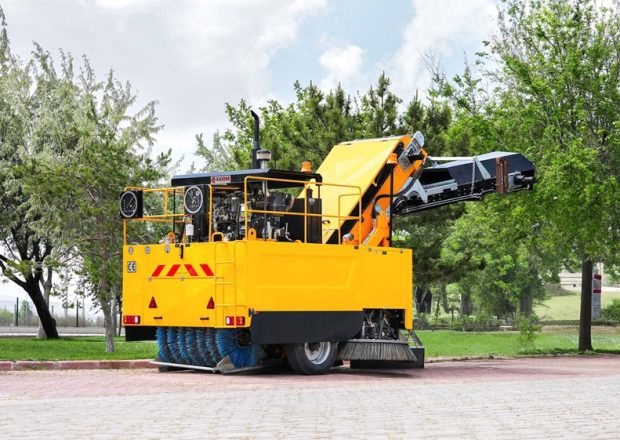

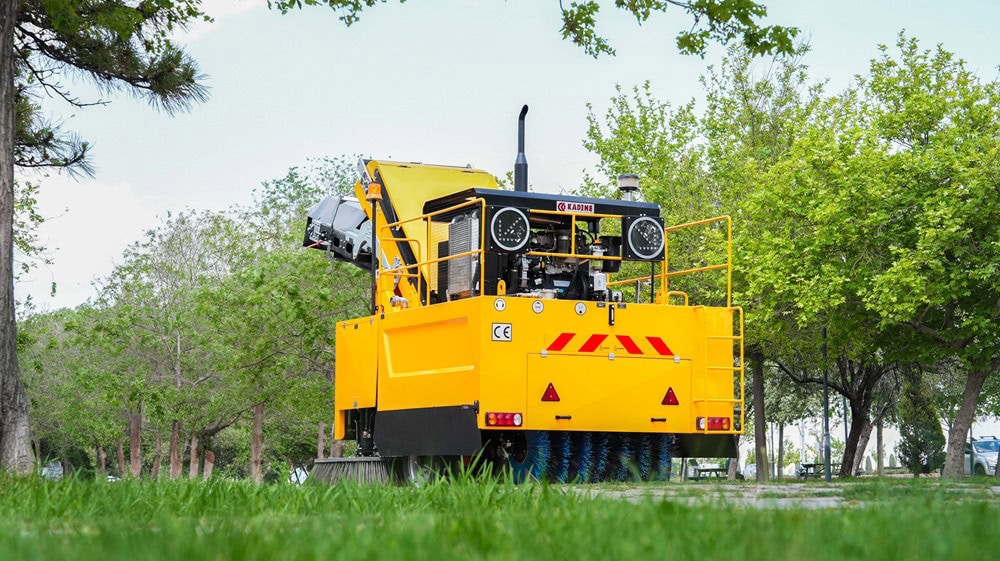

The URAL truck-towed road sweeper is designed for high-capacity professional cleaning in both urban areas and large industrial environments. Thanks to its powerful engine, wide sweeping width and high-capacity tanks, it delivers exceptional efficiency for municipal and commercial cleaning operations.

The towed structure integrates seamlessly with existing vehicle fleets and offers low operating costs with easy control features.

Key Features

High-Performance Construction

With an adjustable sweeping width between 3,000 mm and 3,200 mm, the URAL sweeper can clean up to 70,400 m² per hour. Measuring a maximum of 6,800 mm in length and 2,800 mm in width, with a dump height of 2,700 mm to 3,200 mm, it performs effectively in both wide and narrow spaces.

Large Tank Capacity

It is equipped with a 1,200 lt water tank (two 600 lt tanks), a 200 lt fuel tank and a 200 lt hydraulic oil tank, allowing uninterrupted cleaning over extended periods.

Sweeping and Water Spray System

Advanced Brush Mechanism

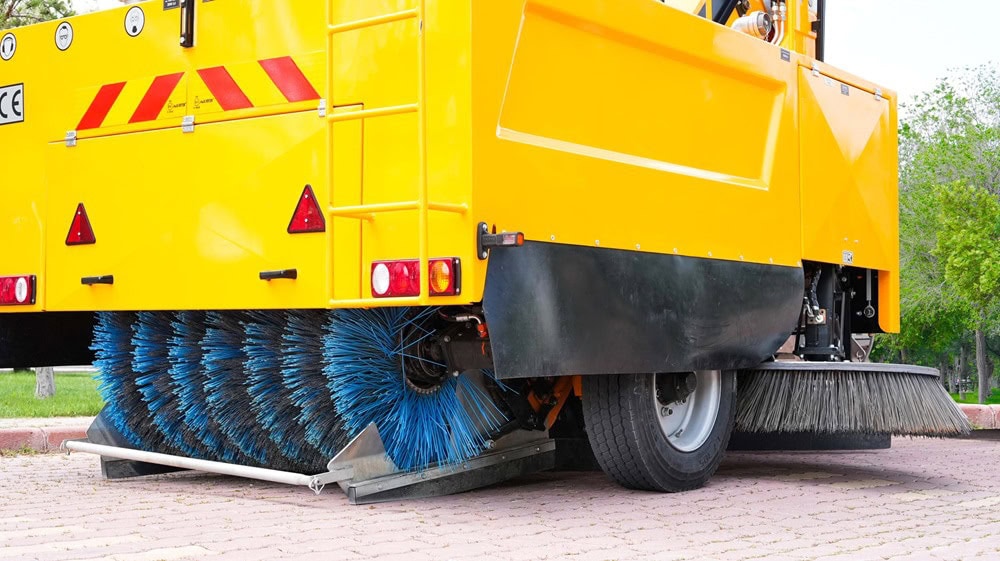

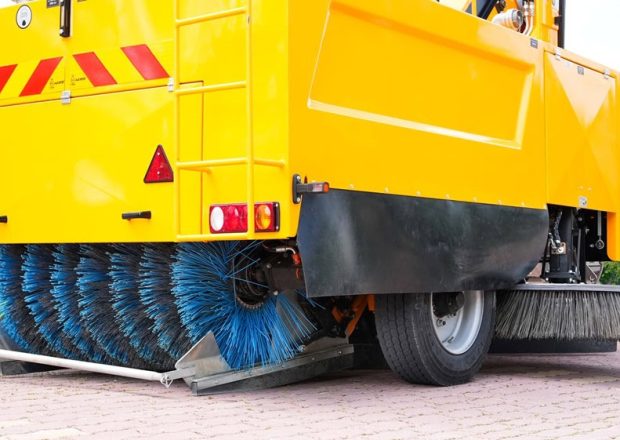

Ø 1,000 mm side brushes running at 0 to 150 rpm and a Ø 900 mm rear brush (1,150 mm long) running at 0 to 200 rpm are driven by hydraulic motors for optimal surface contact, ensuring efficient debris collection.

High-Pressure Water Spray System

The system includes 14 spray nozzles (8 front, 6 rear) and a water pump with a flow rate of 20 lt/min at up to 100 bar, suppressing dust and ensuring a more hygienic cleaning process.

Engine and Transmission

Powered by a 3.9 lt, 4-cylinder, water-cooled Tümosan diesel engine, the URAL delivers 95 hp (70 kW) at 2,300 rpm and 365 Nm of torque at 1,500 rpm. It complies with EPA Tier 3 and EU Stage 3A emission standards.

Conveyor and Transfer System

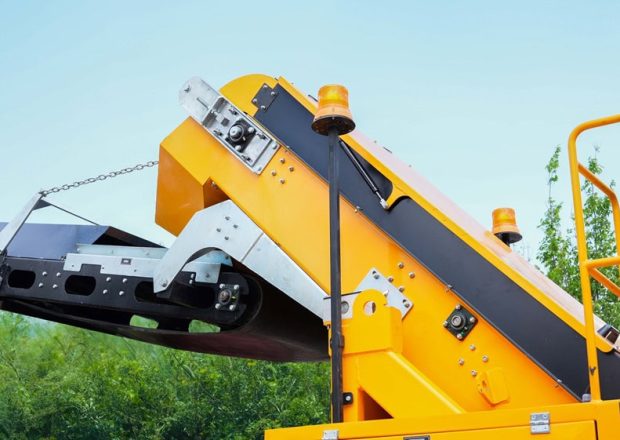

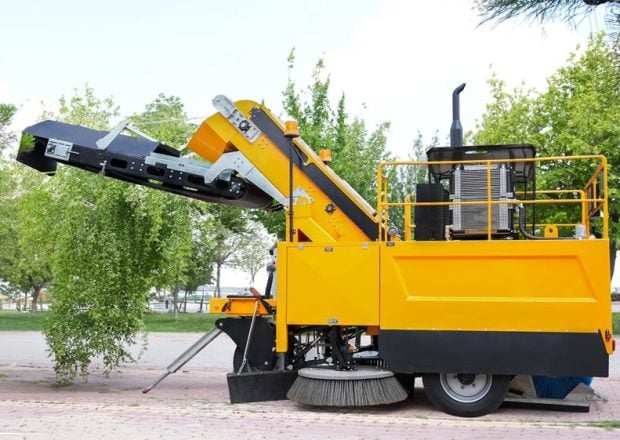

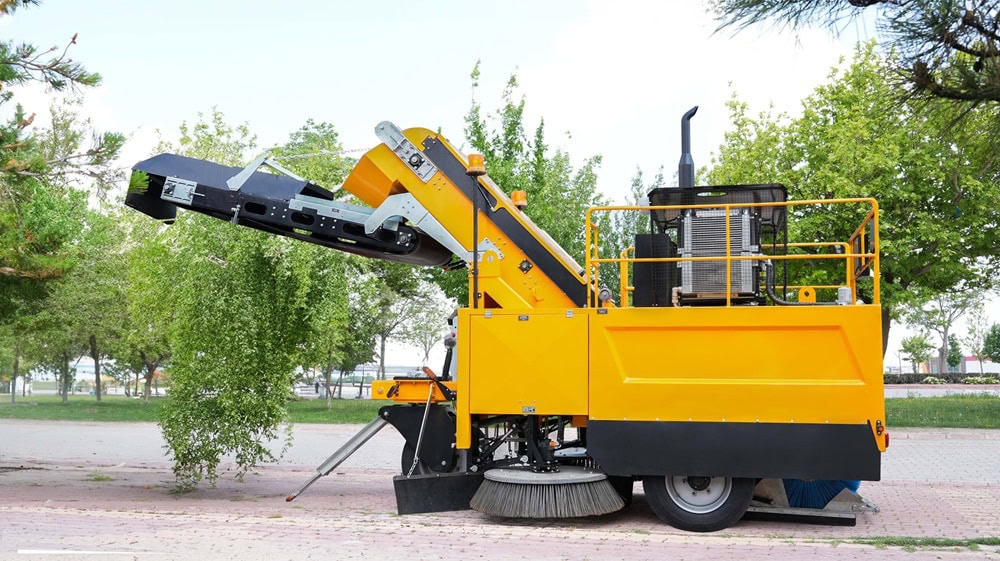

A 700 mm wide ribbed rubber conveyor belt is driven by three toothed rubber belts and supported by 24 easily replaceable rubber scrapers. With an elevator belt of approximately 3,800 mm and a variable-speed conveyor, it provides a dump height of 2,700 mm to 3,200 mm for smooth waste unloading.

Operator Interface and Control Panel

All functions such as engine start/stop, lighting and sweeping controls can be managed from a remote control panel mounted in the towing truck’s cabin. Its user-friendly interface ensures safe and efficient operation in all environments.

Technical Specifications

Tire Size: 225 / 75R 17.5
Sweeping Speed: 22 km/h
Maximum Transport Speed: 40 km/h
Axle: Hydraulic braking system
Suspension: No suspension system

Application Areas

The URAL truck-towed road sweeper is ideal for industrial zones, seaports, organized industrial zones, metropolitan municipalities, airports, highways and logistics centers. Its towed configuration makes it especially effective for long-distance and large-surface cleaning operations.

Why Choose URAL?

With its broad sweeping capacity, powerful diesel engine, flexible usage options and long-lasting components, the URAL is a top-tier choice in the truck-towed road sweeper category. It is built to deliver fast and efficient cleaning in demanding environments. Explore our other road sweepers. Explore our other truck towed road sweepers.
